A stepped shaft ABCD is subjected to three torques as shown in Figure 1. The torques have magnitudes of 3500 Nm, 2500 Nm

[answerhappygod]

A Stepped Shaft Abcd Is Subjected To Three Torques As Shown In Figure 1 The Torques Have Magnitudes Of 3500 Nm 2500 Nm 1 (40.56 KiB) Viewed 43 times

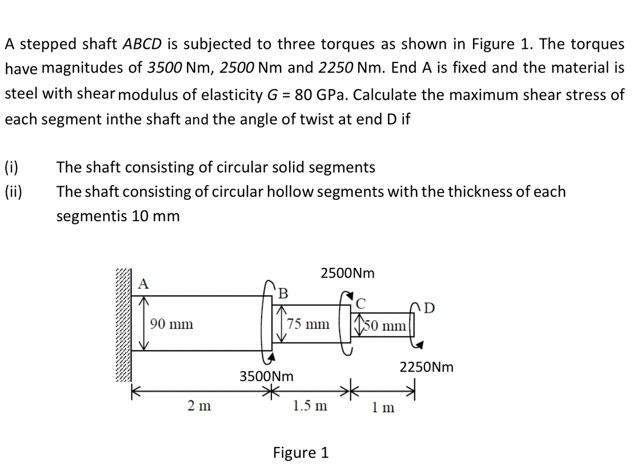

A stepped shaft ABCD is subjected to three torques as shown in Figure 1. The torques have magnitudes of 3500 Nm, 2500 Nm and 2250 Nm. End A is fixed and the material is steel with shear modulus of elasticity G = 80 GPa. Calculate the maximum shear stress of each segment inthe shaft and the angle of twist at end D if (i) (ii) The shaft consisting of circular solid segments The shaft consisting of circular hollow segments with the thickness of each segmentis 10 mm 90 mm 2m 2500Nm 75 mm 3500Nm 1.5 m Figure 1 50 mm * 1m 2250Nm
