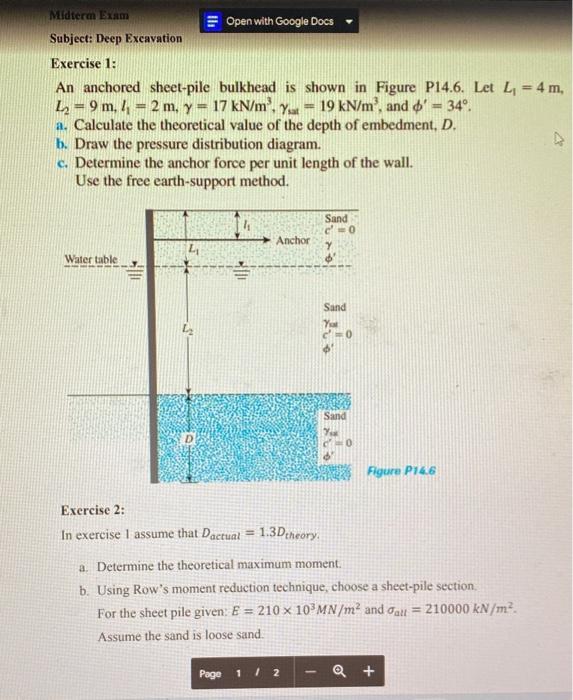

Midterm Exam Subject: Deep Excavation Exercise 1: An anchored sheet-pile bulkhead is shown in Figure P14.6. Let L₁ = 4 m

[answerhappygod]

Midterm Exam Subject Deep Excavation Exercise 1 An Anchored Sheet Pile Bulkhead Is Shown In Figure P14 6 Let L 4 M 1 (68.12 KiB) Viewed 55 times

Midterm Exam Subject: Deep Excavation Exercise 1: An anchored sheet-pile bulkhead is shown in Figure P14.6. Let L₁ = 4 m, L₂9 m, 4,2 m, y = 17 kN/m³, y = 19 kN/m³, and d' = 34°. a. Calculate the theoretical value of the depth of embedment, D. b. Draw the pressure distribution diagram. c. Determine the anchor force per unit length of the wall. Use the free earth-support method. Water table Open with Google Docs D 4 Anchor Exercise 2: In exercise 1 assume that Dactual = 1.3D theory. Sand c=0 Page 1 / 2 Sand Yout c'=0 Sand 0 Figure P14.6 a. Determine the theoretical maximum moment. b. Using Row's moment reduction technique, choose a sheet-pile section. For the sheet pile given: E = 210 x 10³ MN/m² and all = 210000 kN/m². Assume the sand is loose sand. - Q +
