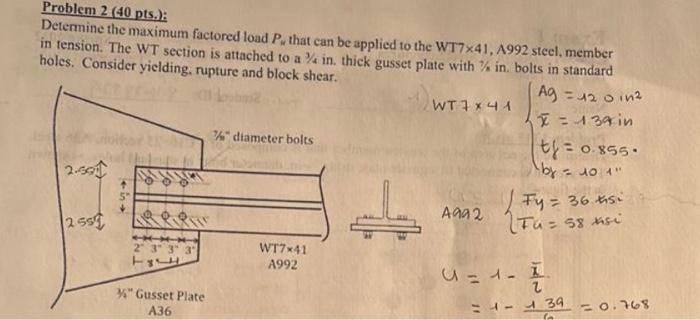

Problem 2 (40 pts.): Determine the maximum factored load P., that can be applied to the WT7x41, A992 steel, member in tension. The WT section is attached to a % in. thick gusset plate with % in. bolts in standard holes. Consider yielding, rupture and block shear. Ag = 120 1² x = 139 in 2.591 255 454 1*X 2 3 3 3 TL %" Gusset Plate A36 % diameter bolts WT7x41 A992 لے WT7x41 A992 tf = 0.855. "by = 101" Fy= 36 si Tu = 58 si U= 1- I 2 = 1-1 39 = 0.768 la
