Problem 4 (15 pts).: A 30 ft long W14x48 is supported by two tension rods AB and CD, as shown in the figure. The 20-kip

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Problem 4 (15 pts).: A 30 ft long W14x48 is supported by two tension rods AB and CD, as shown in the figure. The 20-kip

Post by answerhappygod »

Problem 4 15 Pts A 30 Ft Long W14x48 Is Supported By Two Tension Rods Ab And Cd As Shown In The Figure The 20 Kip 1
Problem 4 15 Pts A 30 Ft Long W14x48 Is Supported By Two Tension Rods Ab And Cd As Shown In The Figure The 20 Kip 1 (25.45 KiB) Viewed 75 times

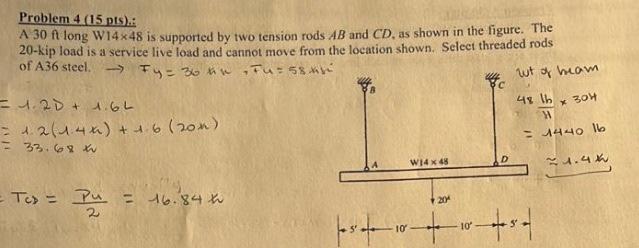

Problem 4 (15 pts).: A 30 ft long W14x48 is supported by two tension rods AB and CD, as shown in the figure. The 20-kip load is a service live load and cannot move from the location shown. Select threaded rods of A36 steel. → Fy= 36 tin Fu= 58 wut of heam = 1.2D + 1.6L = 12(14x) + 16 (201) = 33.68 Xv 13 = TcD = Pu = 16.84 NA W14 x 48 204 48 lb H = 1440 16 51.4% +10 +10+5 -10° 304 x
