QUESTION 2 Major Topic 4 Blooms Designation UN a) Name and explain the function of the diagram below and accurately labe

[answerhappygod]

Question 2 Major Topic 4 Blooms Designation Un A Name And Explain The Function Of The Diagram Below And Accurately Labe 1 (107.7 KiB) Viewed 43 times

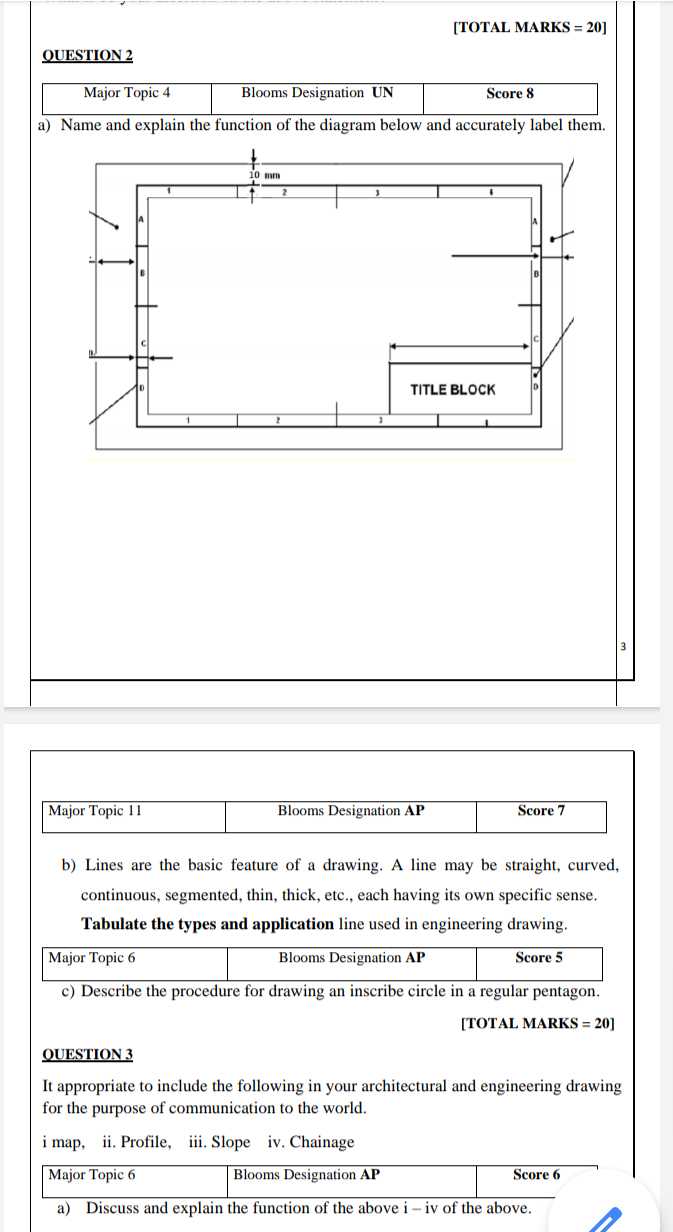

QUESTION 2 Major Topic 4 Blooms Designation UN a) Name and explain the function of the diagram below and accurately label them. Major Topic 11 10 mm [TOTAL MARKS =20] Blooms Designation AP Score 8 TITLE BLOCK Score 7 b) Lines are the basic feature of a drawing. A line may be straight, curved, continuous, segmented, thin, thick, etc., each having its own specific sense. Tabulate the types and application line used in engineering drawing. Blooms Designation AP Score 5 Major Topic 6 c) Describe the procedure for drawing an inscribe circle in a regular pentagon. [TOTAL MARKS=20] QUESTION 3 It appropriate to include the following in your architectural and engineering drawing for the purpose of communication to the world. i map, ii. Profile, iii. Slope iv. Chainage Major Topic 6 Blooms Designation AP a) Discuss and explain the function of the above i iv of the above. Score 6
