3. Draw the Shear and Moment diagrams. Label all min, max, and zero points including magnitude and distance along the x-axis. Include units.

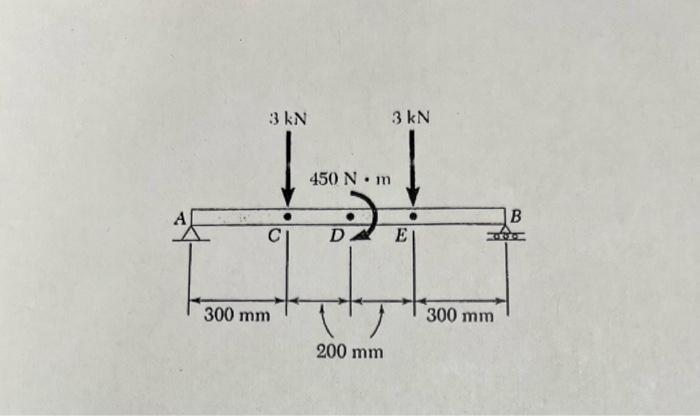

b. Simply supported beam with two concentrated loads and a moment. ALF
3 kN 300 mm 450 Nm 3 kN DA E (7 200 mm 300 mm B
