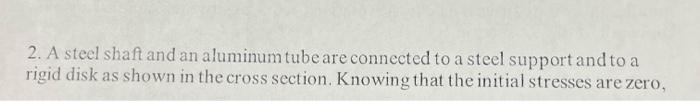

2. A steel shaft and an aluminum tube are connected to a steel support and to a rigid disk as shown in the cross section. Knowing that the initial stresses are zero,

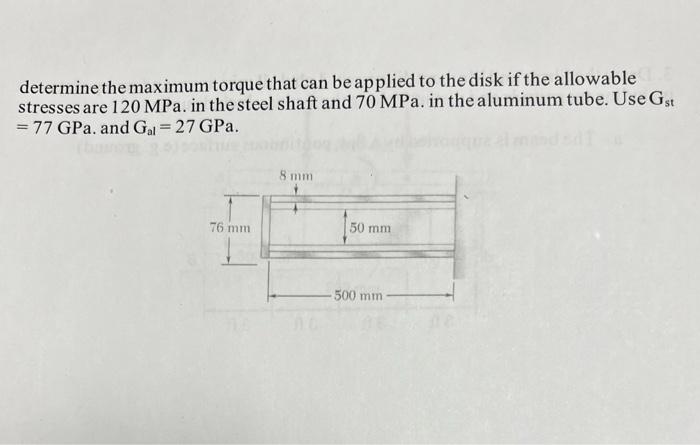

determine the maximum torque that can be applied to the disk if the allowable E stresses are 120 MPa. in the steel shaft and 70 MPa. in the aluminum tube. Use Gst = 77 GPa. and Gal = 27 GPa. 76 mm 8 mm 50 mm 500 mm
