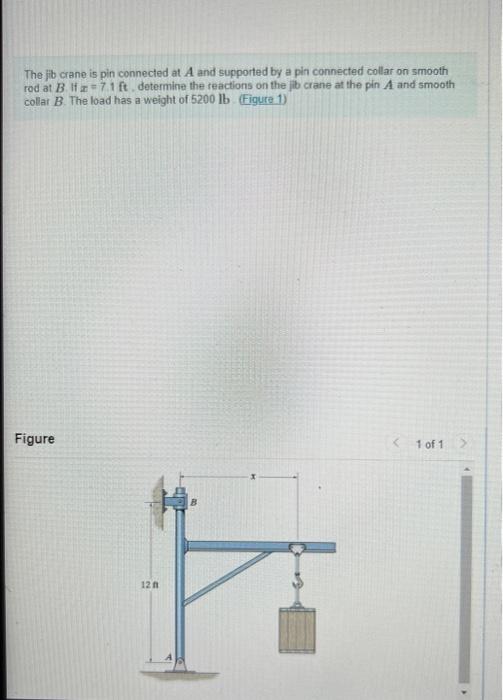

The jib crane is pin connected at A and supported by a pin connected collar on smooth rod at B. If a 7.1 ft. determine the reactions on the jib crane at the pin A and smooth collar B. The load has a weight of 5200 lb (Figure 1) Figure 12 f < 1 of 1 >

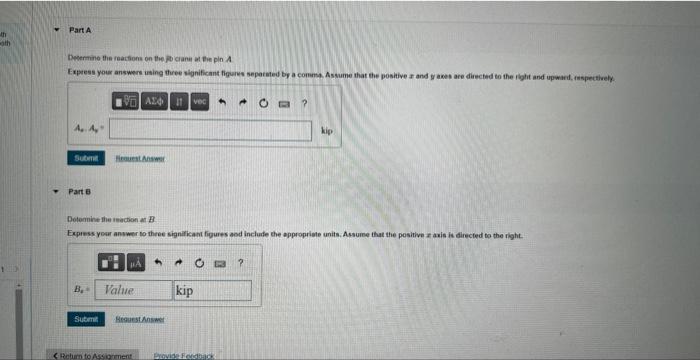

th oth Part A Determine the reactions on the jb crane at the pin A Express your answers using three significant figures separated by a comma. Assume that the positive z and y axes are directed to the right and upward, respectively. AE Ivec A A Ca ? Submit Part B B₂ Hequest Answer Determine the reaction at B Express your answer to three significant figures and include the appropriate units. Assume that the positive axis is directed to the right. Submit "A Value Request Answer kip CE ? kip <Return to Assignment Provide Fondback
