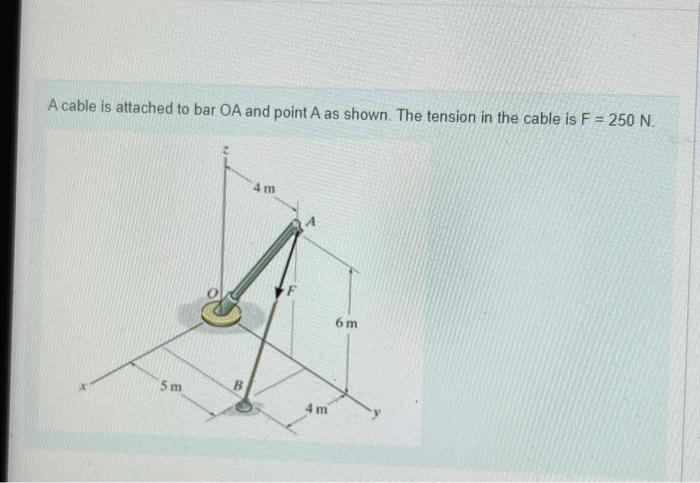

- A Cable Is Attached To Bar Oa And Point A As Shown The Tension In The Cable Is F 250 N 5m B 4 M 4m 6m Y Part A Re 1 (45.13 KiB) Viewed 45 times
- A Cable Is Attached To Bar Oa And Point A As Shown The Tension In The Cable Is F 250 N 5m B 4 M 4m 6m Y Part A Re 2 (66.6 KiB) Viewed 45 times
- A Cable Is Attached To Bar Oa And Point A As Shown The Tension In The Cable Is F 250 N 5m B 4 M 4m 6m Y Part A Re 3 (27.64 KiB) Viewed 45 times
▼ Y Part A Resolve for F into its vector components. Express your answer to three significant figures separtated by commas. (F., F, F.) = Submit Request Answer Part B FAO= ΟΙ ΑΣΦ | 11 Submit Use the dot product to find the magnitude of the projected component of the force along the pipe AO Express your answer to three significant figures. μA Value Request Answer vec → C (599) N ? ?

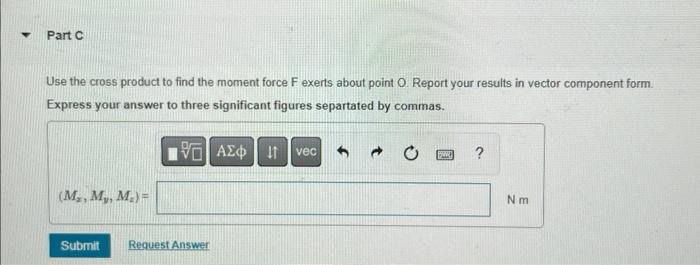

▾ Part C Use the cross product to find the moment force F exerts about point O. Report your results in vector component form. Express your answer to three significant figures separtated by commas. (M₂, M,, M₂)= 1951 ΑΣΦ | 11 Submit Request Answer vec → ? Nm
