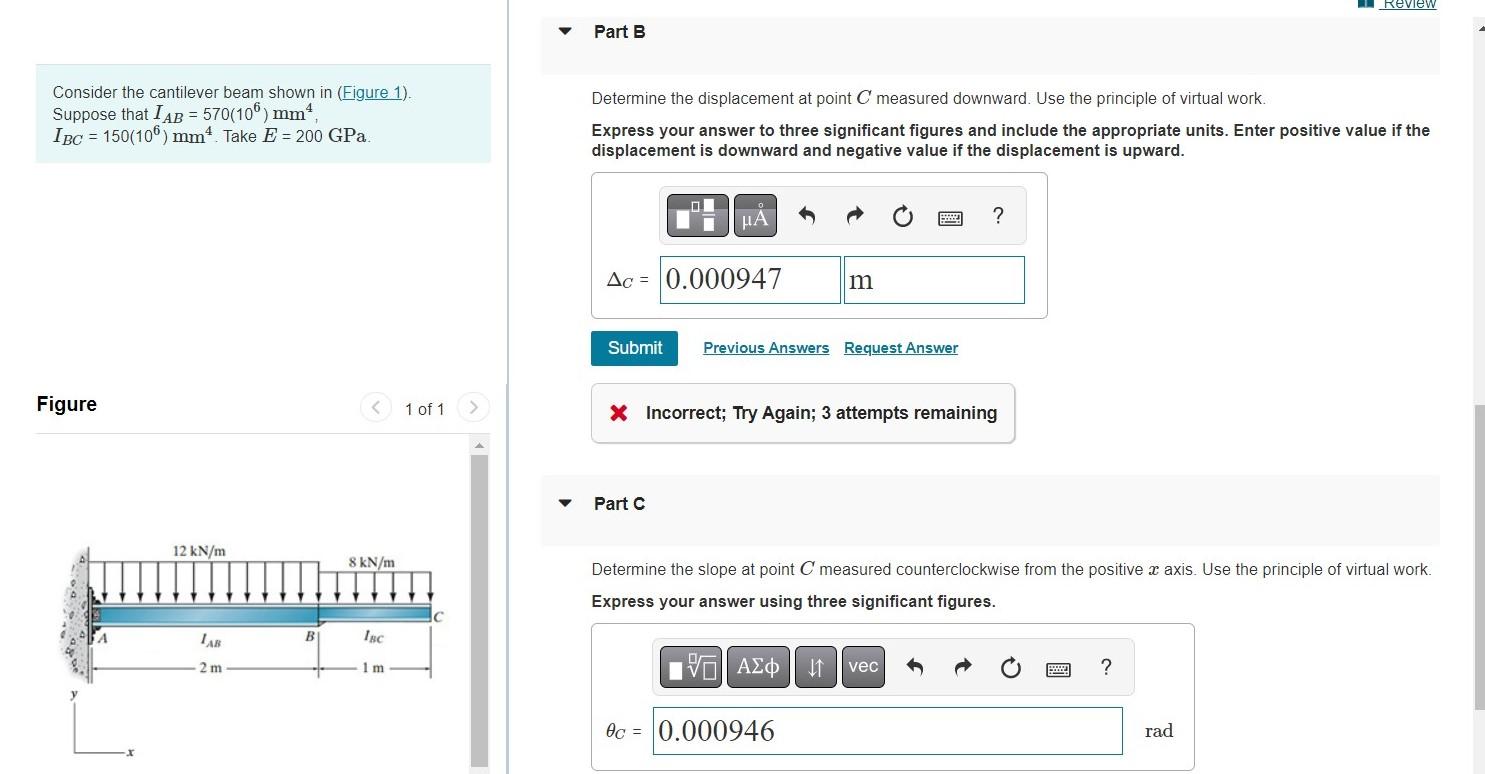

Consider the cantilever beam shown in (Figure 1). Suppose that IAB = 570(106) mm², IBC = 150(106) mm4. Take E = 200 GPa. Figure 12 kN/m LAB 2m B 8 kN/m Isc 1m 1 of 1 Part B Determine the displacement at point C measured downward. Use the principle of virtual work. Express your answer to three significant figures and include the appropriate units. Enter positive value if the displacement is downward and negative value if the displacement is upward. ΜΑ Ac 0.000947 Submit Previous Answers Request Answer Part C m X Incorrect; Try Again; 3 attempts remaining ? 0c = 0.000946 Determine the slope at point C measured counterclockwise from the positive x axis. Use the principle of virtual work. Express your answer using three significant figures. IVE ΑΣΦ ↓↑ vec Review ? rad
