4. The rigid L-shaped member ABC is supported by a ball and socket at A and by three cables, DC, DB, and BE. a) Draw the

[answerhappygod]

4 The Rigid L Shaped Member Abc Is Supported By A Ball And Socket At A And By Three Cables Dc Db And Be A Draw The 1 (165.8 KiB) Viewed 50 times

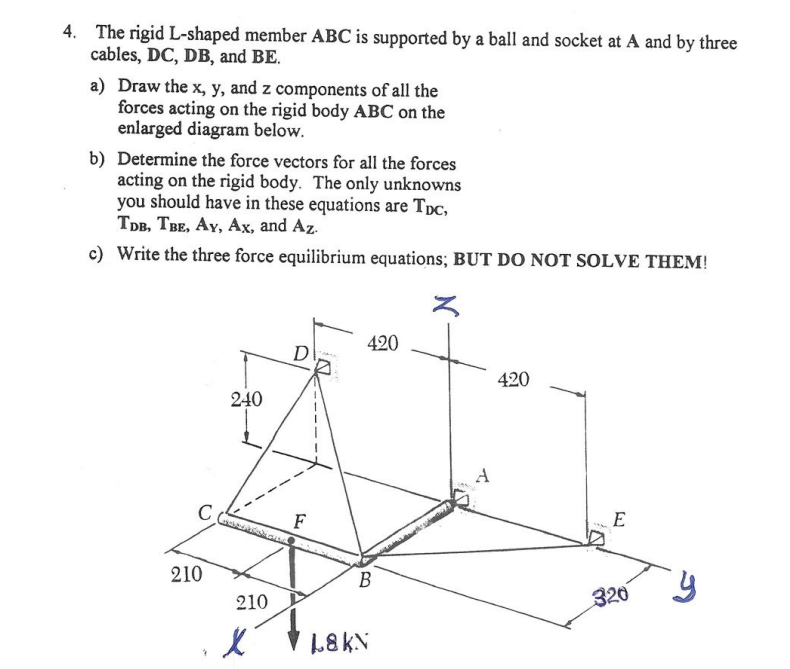

4. The rigid L-shaped member ABC is supported by a ball and socket at A and by three cables, DC, DB, and BE. a) Draw the x, y, and z components of all the forces acting on the rigid body ABC on the enlarged diagram below. b) Determine the force vectors for all the forces acting on the rigid body. The only unknowns you should have in these equations are Tpc, TDB, TBE, AY, Ax, and Az. c) Write the three force equilibrium equations; BUT DO NOT SOLVE THEM! C 210 240 neb 210 X D F 420 B 18KN A 420 E 320
