80 mm 200 mm 350 mm 76 mm 200 mm A reinforced concrete beam has a total depth of 700mm. Use f'c = 34 MPa and fy = 415 MP

[answerhappygod]

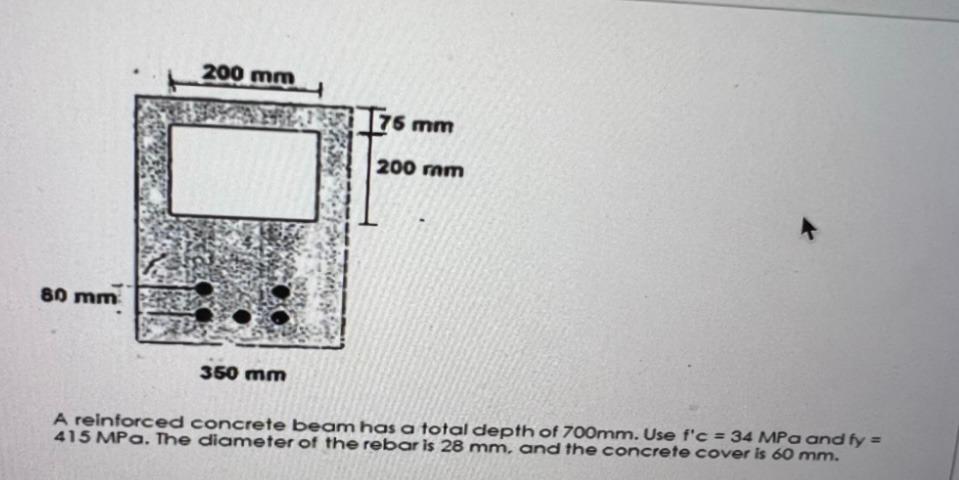

80 Mm 200 Mm 350 Mm 76 Mm 200 Mm A Reinforced Concrete Beam Has A Total Depth Of 700mm Use F C 34 Mpa And Fy 415 Mp 1 (47.72 KiB) Viewed 65 times

1. What is the depth of the compression block? (mm)
a. 216.94mm b. 194.74mm c. 250.51mm d. 156.19mm
2. What is the total compressive force resisted by the concrete?(kN)
3. What is the nominal moment capacity? (kN-m)
80 mm 200 mm 350 mm 76 mm 200 mm A reinforced concrete beam has a total depth of 700mm. Use f'c = 34 MPa and fy = 415 MPa. The diameter of the rebar is 28 mm, and the concrete cover is 60 mm.
