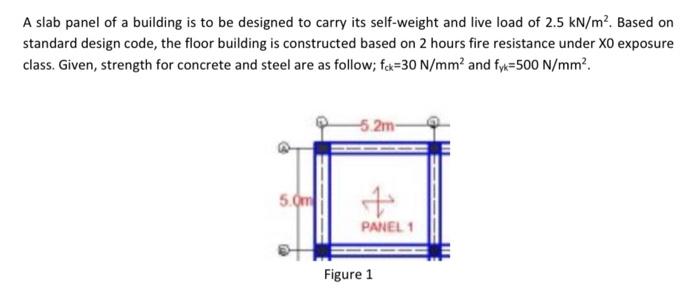

A slab panel of a building is to be designed to carry its self-weight and live load of 2.5 kN/m². Based on standard design code, the floor building is constructed based on 2 hours fire resistance under XO exposure class. Given, strength for concrete and steel are as follow; fck=30 N/mm² and fyk-500 N/mm². 5.0m -5.2m- t PANEL 1 Figure 1

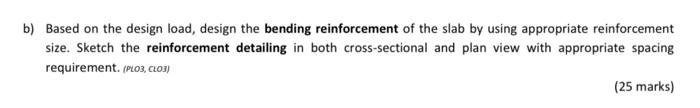

b) Based on the design load, design the bending reinforcement of the slab by using appropriate reinforcement size. Sketch the reinforcement detailing in both cross-sectional and plan view with appropriate spacing requirement. (PLO3, CLO3) (25 marks)
