2. A column of rectangular cross-section (unit thickness) is subject to the action of a concentrated moment M at the top

Post by answerhappygod »

2 A Column Of Rectangular Cross Section Unit Thickness Is Subject To The Action Of A Concentrated Moment M At The Top 1
2 A Column Of Rectangular Cross Section Unit Thickness Is Subject To The Action Of A Concentrated Moment M At The Top 1 (27.73 KiB) Viewed 34 times

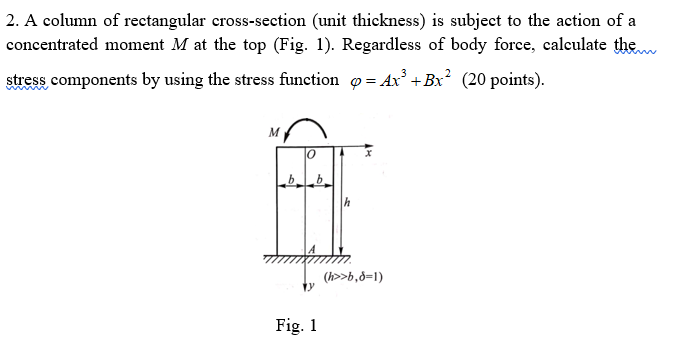

2. A column of rectangular cross-section (unit thickness) is subject to the action of a concentrated moment M at the top (Fig. 1). Regardless of body force, calculate the stress components by using the stress function = Ax³ + Bx² (20 points). M 0 b. Fig. 1 (h>>b,d=1)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
