Question 8 Figure Q8a overleaf shows two cylinders of a V engine. • The dimensions for the engine are given in figure Q8

[answerhappygod]

Question 8 Figure Q8a Overleaf Shows Two Cylinders Of A V Engine The Dimensions For The Engine Are Given In Figure Q8 1 (34.94 KiB) Viewed 61 times

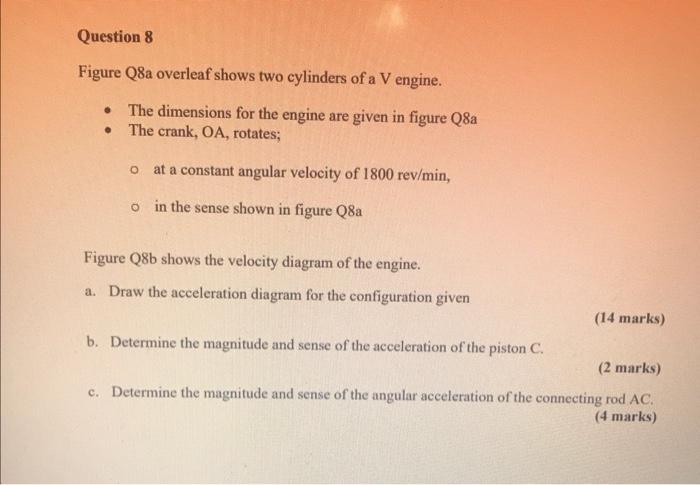

Question 8 Figure Q8a overleaf shows two cylinders of a V engine. • The dimensions for the engine are given in figure Q8a The crank, OA, rotates; • o at a constant angular velocity of 1800 rev/min, o in the sense shown in figure Q8a Figure Q8b shows the velocity diagram of the engine. a. Draw the acceleration diagram for the configuration given b. Determine the magnitude and sense of the acceleration of the piston C. (14 marks) (2 marks) c. Determine the magnitude and sense of the angular acceleration of the connecting rod AC. (4 marks)
