3. For the open loop system KG(s) = K(s+1) s²(s+10)² which is in a unity gain feedback system. You can use Matlab or plo

Post by answerhappygod »

3 For The Open Loop System Kg S K S 1 S S 10 Which Is In A Unity Gain Feedback System You Can Use Matlab Or Plo 1
3 For The Open Loop System Kg S K S 1 S S 10 Which Is In A Unity Gain Feedback System You Can Use Matlab Or Plo 1 (25.81 KiB) Viewed 40 times
please provide step by step solution, thank you !

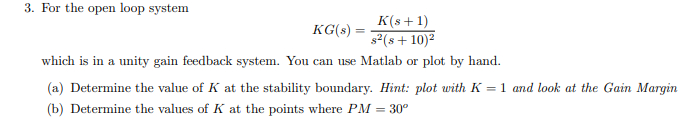

3. For the open loop system KG(s) = K(s+1) s²(s+10)² which is in a unity gain feedback system. You can use Matlab or plot by hand. (a) Determine the value of K at the stability boundary. Hint: plot with K = 1 and look at the Gain Margin (b) Determine the values of K at the points where PM = 30°
