1. Bode plot: Using individual frequencies and using Bode plot rules. (a) Calculate the magnitude and phase of G(s) = 1

Post by answerhappygod »

1 Bode Plot Using Individual Frequencies And Using Bode Plot Rules A Calculate The Magnitude And Phase Of G S 1 1
1 Bode Plot Using Individual Frequencies And Using Bode Plot Rules A Calculate The Magnitude And Phase Of G S 1 1 (22.15 KiB) Viewed 27 times
please provide step by step solution, thank you

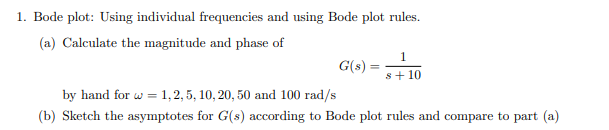

1. Bode plot: Using individual frequencies and using Bode plot rules. (a) Calculate the magnitude and phase of G(s) = 1 s + 10 by hand for w = 1, 2, 5, 10, 20, 50 and 100 rad/s (b) Sketch the asymptotes for G(s) according to Bode plot rules and compare to part (a)
