Problem 3: Construct the shear and bending moment diagrams for the compound beam shown. Show your work. Make sure you in

Post by answerhappygod »

Problem 3 Construct The Shear And Bending Moment Diagrams For The Compound Beam Shown Show Your Work Make Sure You In 1
Problem 3 Construct The Shear And Bending Moment Diagrams For The Compound Beam Shown Show Your Work Make Sure You In 1 (228.86 KiB) Viewed 34 times

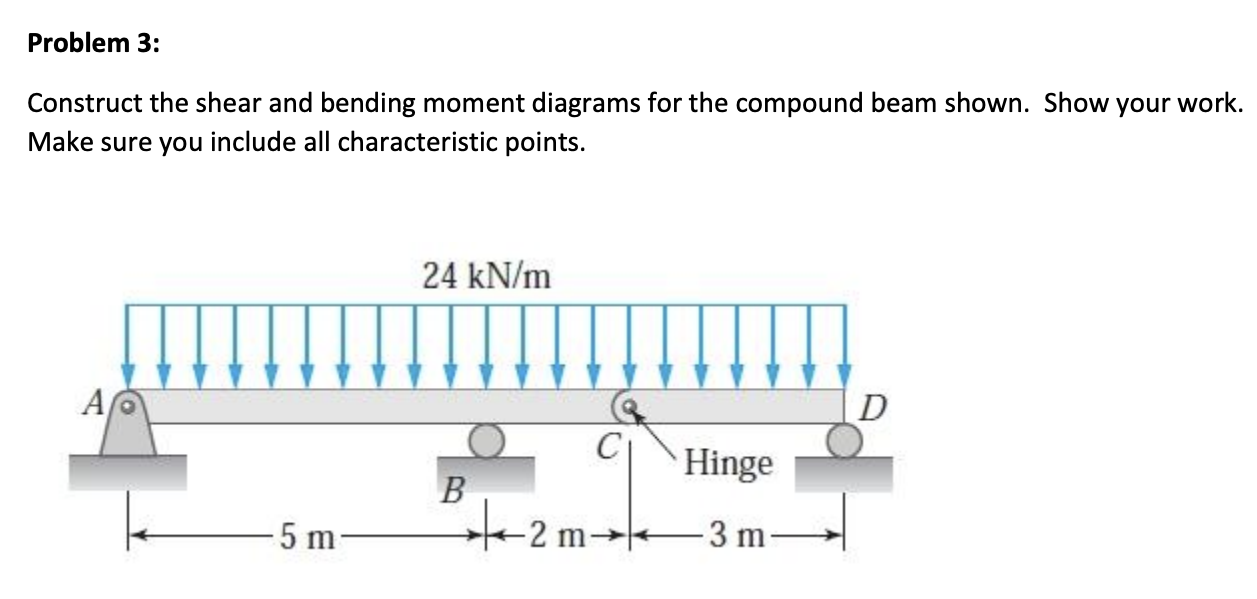

Problem 3: Construct the shear and bending moment diagrams for the compound beam shown. Show your work. Make sure you include all characteristic points. A -5 m 24 kN/m B -2 m- Hinge -3 m D
