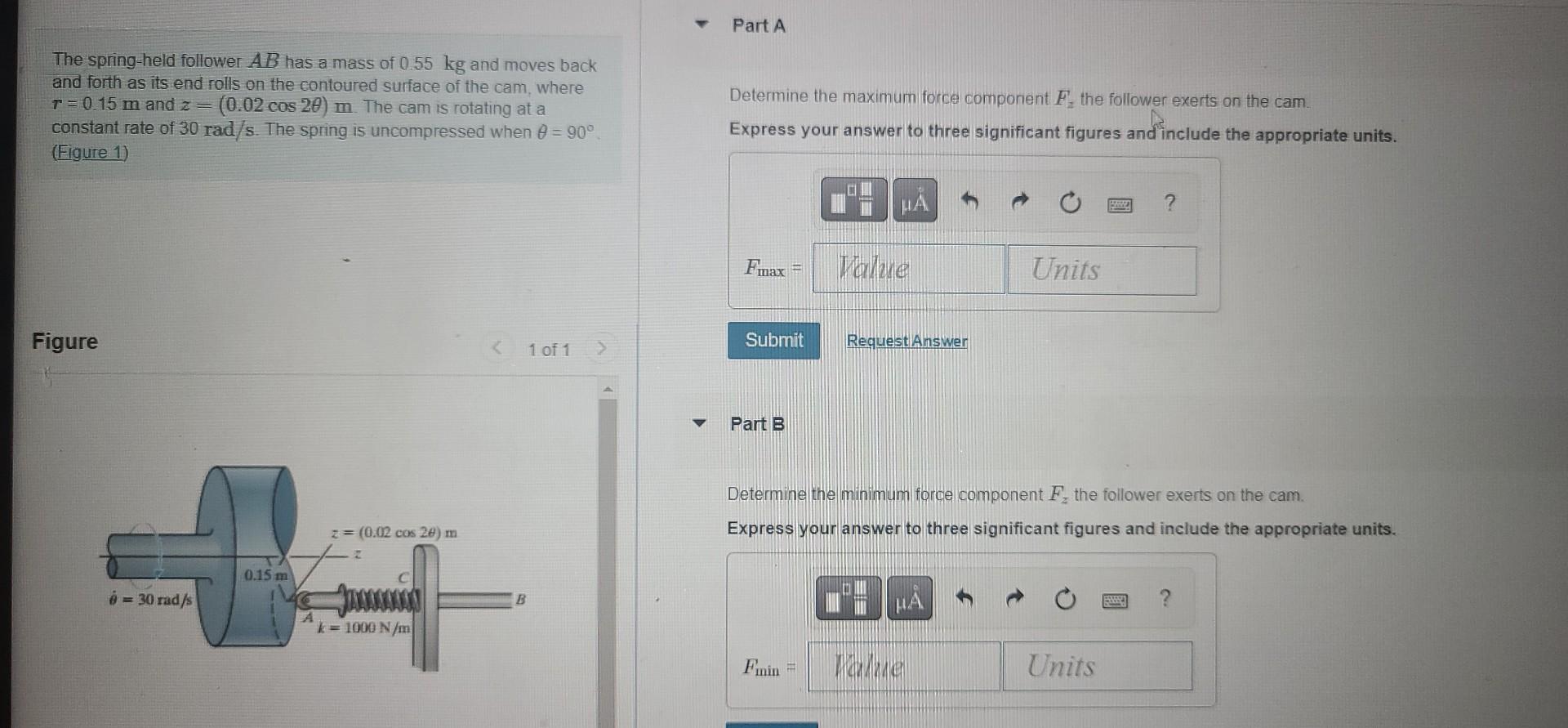

The spring-held follower AB has a mass of 0.55 kg and moves back and forth as its end rolls on the contoured surface of the cam, where T= 0.15 m and z = (0.02 cos 20) m. The cam is rotating at a constant rate of 30 rad/s. The spring is uncompressed when 0 = 90° (Figure 1) Figure = 30 rad/s 0.15 m z = (0.02 cos 20) m 2 k= 1000 N/m B 1 of 1 T Part A Determine the maximum force component F, the follower exerts on the cam. Express your answer to three significant figures and include the appropriate units. Fmax = Submit Part B HÅ Finin = Value Request Answer Units Determine the minimum force component F, the follower exerts on the cam. Express your answer to three significant figures and include the appropriate units. Talue ? Units

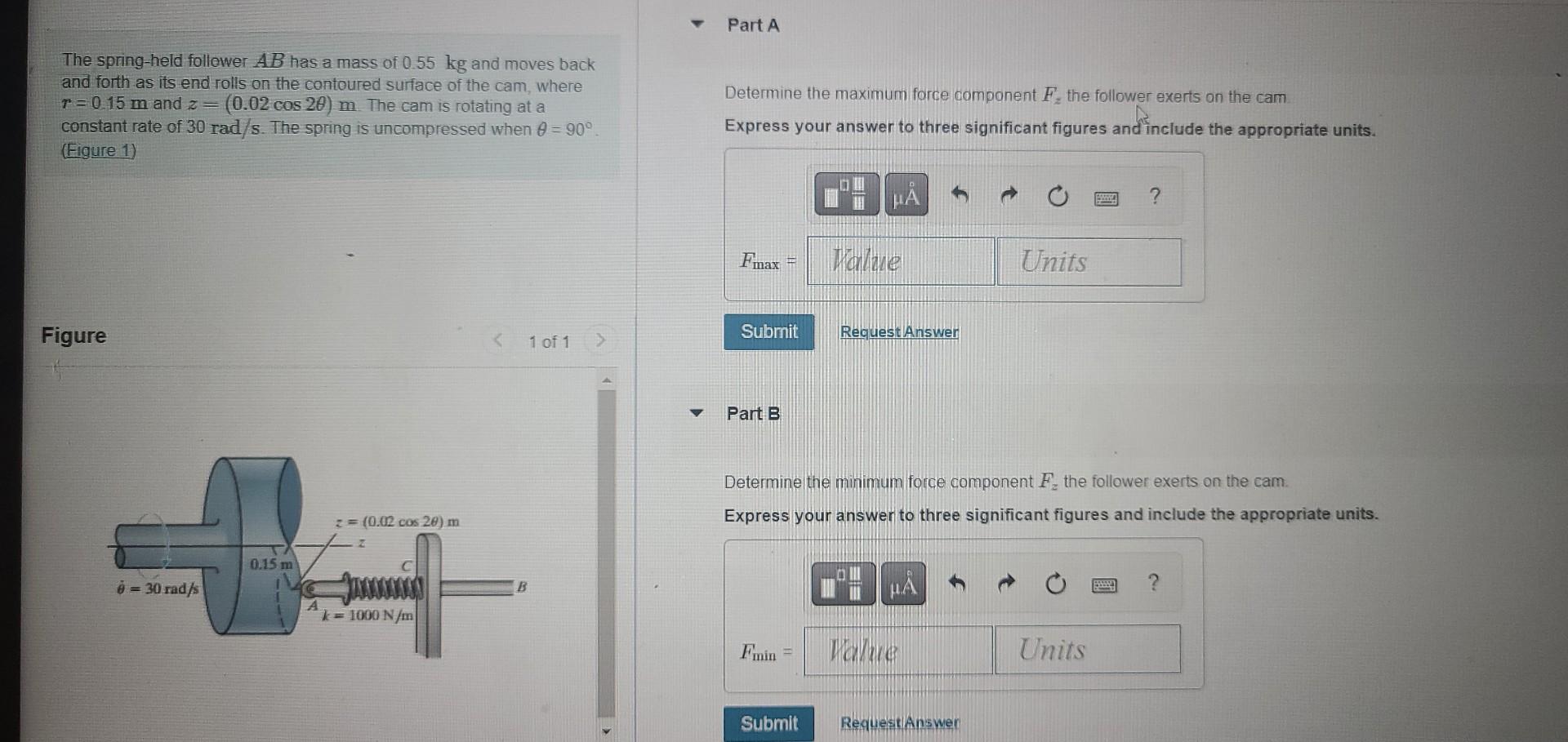

The spring-held follower AB has a mass of 0.55 kg and moves back and forth as its end rolls on the contoured surface of the cam, where T= 0.15 m and z = (0.02 cos 20) m. The cam is rotating at a constant rate of 30 rad/s. The spring is uncompressed when = 90°. (Figure 1) Figure 6=30 rad/s 0.15 m z=(0.02 cos 20) m C k= 1000 N/m 1 of 1 B ▼ Part A Determine the maximum force component F, the follower exerts on the cam Express your answer to three significant figures and include the appropriate units. Fmax = Submit Part B 01 Submit μA Value Request Answer Om Determine the minimum force component F. the follower exerts on the cam. Express your answer to three significant figures and include the appropriate units. HA Lahue Units Request Answer ? Units
