a) b) Page 2 of 3 6 ksi 14 ksi A metallic bar having elastic modulus, E = 16*10³ ksi, Poisson's ratio, v=0.33, and therm

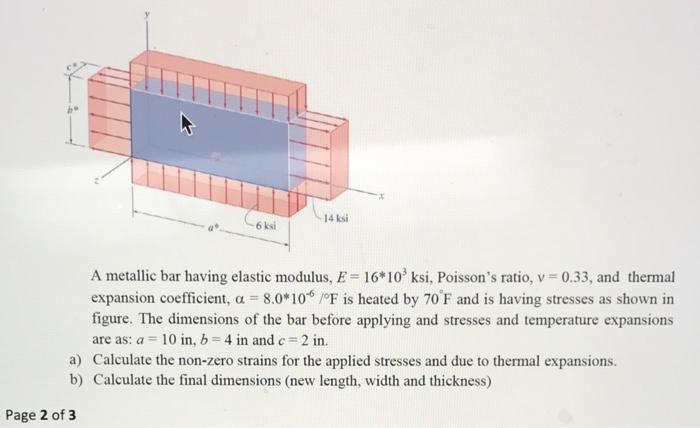

a) b) Page 2 of 3 6 ksi 14 ksi A metallic bar having elastic modulus, E = 16*10³ ksi, Poisson's ratio, v=0.33, and thermal expansion coefficient, a = 8.0*10*/°F is heated by 70°F and is having stresses as shown in figure. The dimensions of the bar before applying and stresses and temperature expansions are as: a = 10 in, b=4 in and c = 2 in. Calculate the non-zero strains for the applied stresses and due to thermal expansions. Calculate the final dimensions (new length, width and thickness)
