A steel plate 16 mm thick and 1 mm thick depth forms a 1.5m cylinder welding diameter by front fillets Interior and exte

Post by answerhappygod »

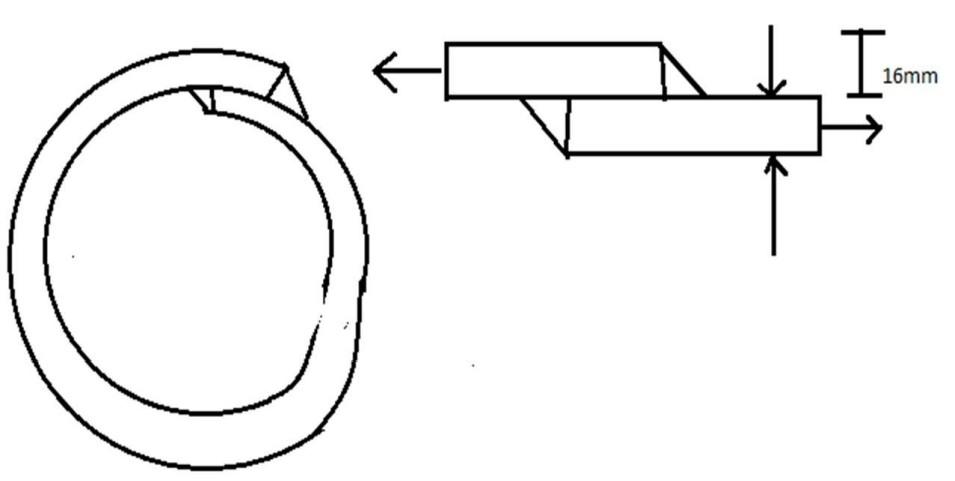

A steel plate 16 mm thick and 1 mm thick depth forms a 1.5m cylinder welding diameter by front fillets Interior and exterior. determine the maximum internal pressure that can be applied if the efforts admissible are of 160mN/m^2 in the sheet and 120MPa in shear at the weld throats. So also determine the load that will support the plate and the resistance of the cord for each mm of depth.
A Steel Plate 16 Mm Thick And 1 Mm Thick Depth Forms A 1 5m Cylinder Welding Diameter By Front Fillets Interior And Exte 1
A Steel Plate 16 Mm Thick And 1 Mm Thick Depth Forms A 1 5m Cylinder Welding Diameter By Front Fillets Interior And Exte 1 (25.32 KiB) Viewed 30 times
16mm
