The space truss shown in (Figure 1) is supported by ball- and-socket joints at A, B, and E. Set F = {850 j} N. Hint: The

Post by **answerhappygod** » Sun Jul 10, 2022 11:42 am

: The Space Truss Shown In Figure 1 Is Supported By Ball And Socket Joints At A B And E Set F 850 J N Hint The 1 (195.16 KiB) Viewed 45 times

: The Space Truss Shown In Figure 1 Is Supported By Ball And Socket Joints At A B And E Set F 850 J N Hint The 2 (99.2 KiB) Viewed 45 times

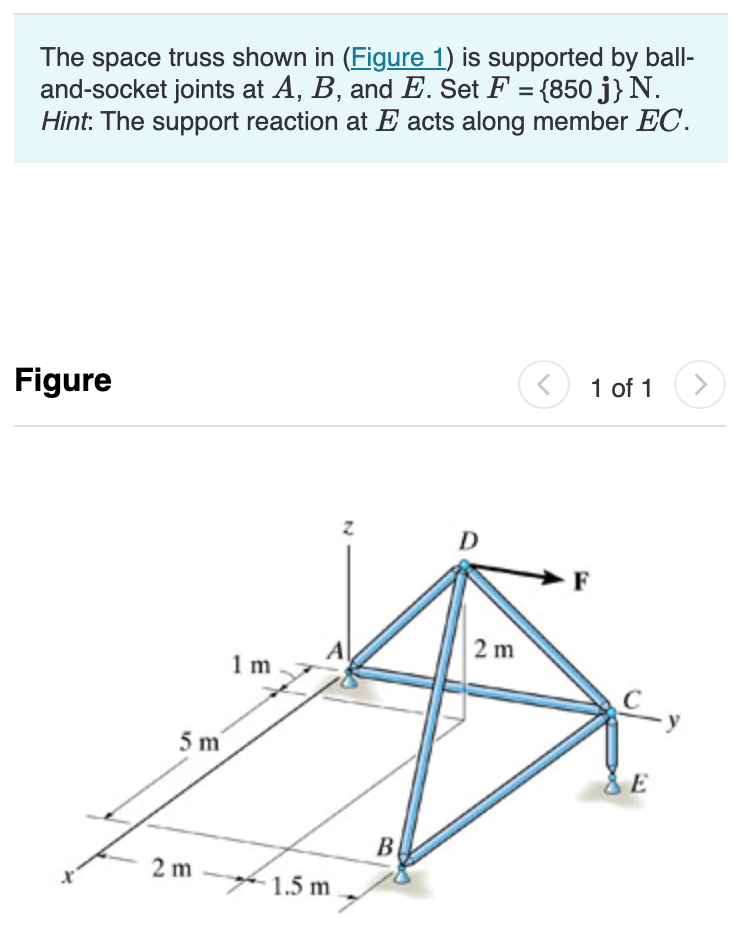

The space truss shown in (Figure 1) is supported by ball- and-socket joints at A, B, and E. Set F = {850 j} N. Hint: The support reaction at E acts along member EC. Figure 5 m 2m 1m 1.5 m B D 2m < 1 of 1 C_y E >
Determine the force in the member AD of the truss and state if the member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. FAD= Submit Part B ☐ FBD O μA Value Request Answer ☐ Determine the force in the member BD of the truss and state if the member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. μÅ Units Value ? Units ?
Determine the force in the member CD of the truss and state if the member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. FCD = Part D 0 μA Submit Request Answer FAC = Value Units Determine the force in the member AC of the truss and state if the member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. Value ? Units ?
Determine the force in the member BC of the truss and state if the member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. FBC = Submit Part F ☐ FEC = O μĂ Value Request Answer 0 Determine the force in the member EC of the truss and state if the member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. μÅ Units Value ? Units ?
