Quiz # 6 [25 Points] Brayton Cycle Analyiss An ideal air-standard Brayton cycle has a compressor pressure ratio of 10. A

[answerhappygod]

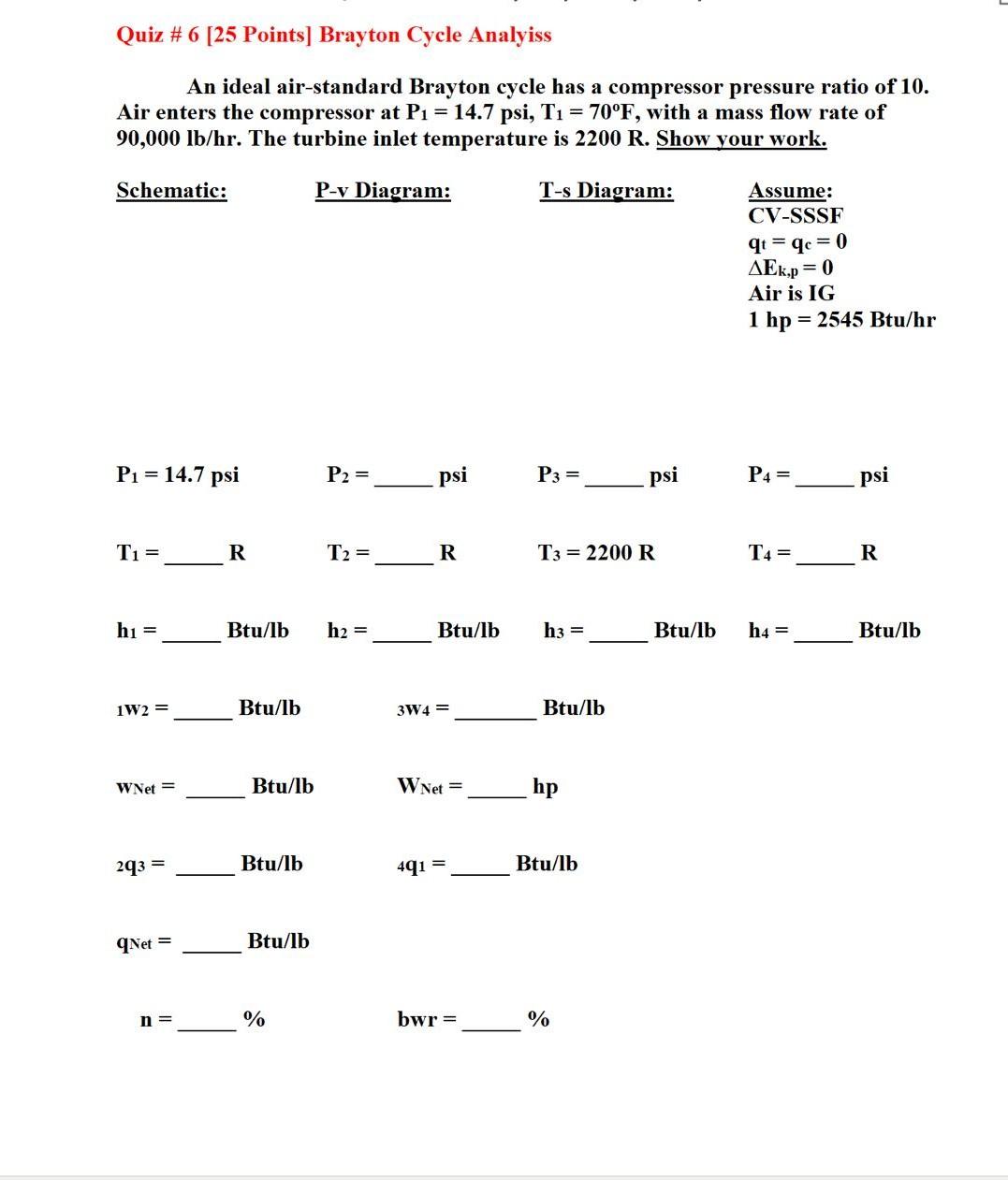

Quiz 6 25 Points Brayton Cycle Analyiss An Ideal Air Standard Brayton Cycle Has A Compressor Pressure Ratio Of 10 A 1 (79.57 KiB) Viewed 23 times

Quiz # 6 [25 Points] Brayton Cycle Analyiss An ideal air-standard Brayton cycle has a compressor pressure ratio of 10. Air enters the compressor at P₁ = 14.7 psi, T₁ = 70°F, with a mass flow rate of 90,000 lb/hr. The turbine inlet temperature is 2200 R. Show your work. P-v Diagram: T-s Diagram: Schematic: P₁ = 14.7 psi T₁ = h₁ = 1W2= WNet = 293 = qNet = n= R Btu/lb Btu/lb Btu/lb Btu/lb Btu/lb % P₂ = T₂ = h₂ = psi R Btu/lb 3W4= WNet = 491 = bwr= P3 = T3 = 2200 R h3 = Btu/lb hp Btu/lb psi % Btu/lb Assume: CV-SSSF qt=qc=0 AEk,p= 0 Air is IG 1 hp = 2545 Btu/hr P4= T4= h4 = psi R Btu/lb
