The rigid bar is supported by the pin-connected rod CB that has a cross-sectional area of 12 mm² and is made from 6061-T

Post by answerhappygod »

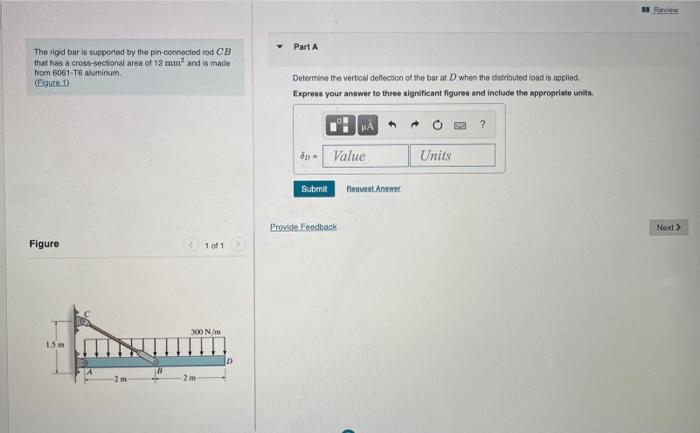

The Rigid Bar Is Supported By The Pin Connected Rod Cb That Has A Cross Sectional Area Of 12 Mm And Is Made From 6061 T 1
The Rigid Bar Is Supported By The Pin Connected Rod Cb That Has A Cross Sectional Area Of 12 Mm And Is Made From 6061 T 1 (24.25 KiB) Viewed 55 times
The rigid bar is supported by the pin-connected rod CB that has a cross-sectional area of 12 mm² and is made from 6061-T6 aluminum. (Figure 1) Figure 1.5m 1 of 1 300 N/m -2m Part A Determine the vertical deflection of the bar at D when the distributed load is applied Express your answer to three significant figures and include the appropriate units. 5D - Value Submit Provide Feedback Request Answer Units Review Next >
