Direct tension indicators are sometimes used instead of torque wrenches to ensure that a bolt has a prescribed tension w

[answerhappygod]

Direct Tension Indicators Are Sometimes Used Instead Of Torque Wrenches To Ensure That A Bolt Has A Prescribed Tension W 1 (88.03 KiB) Viewed 38 times

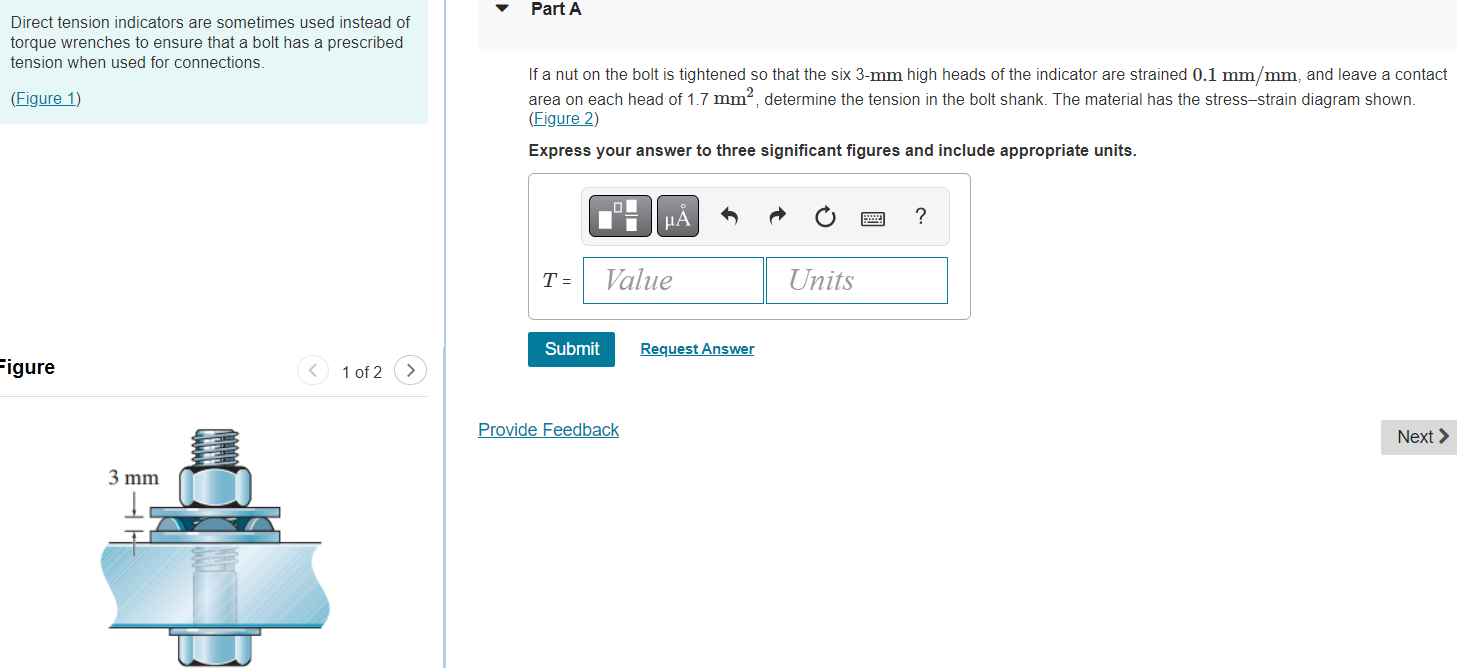

Direct tension indicators are sometimes used instead of torque wrenches to ensure that a bolt has a prescribed tension when used for connections. (Figure 1) Figure 3 mm 1 of 2 Part A If a nut on the bolt is tightened so that the six 3-mm high heads of the indicator are strained 0.1 mm/mm, and leave a contact area on each head of 1.7 mm², determine the tension in the bolt shank. The material has the stress-strain diagram shown. (Figure 2) Express your answer to three significant figures and include appropriate units. T = Submit μA Value Provide Feedback Request Answer Units ? Next >
