Two cylindrical rods, one of steel and the other brass are joined at C and restrained by rigid support at A, At the supp

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Two cylindrical rods, one of steel and the other brass are joined at C and restrained by rigid support at A, At the supp

Post by answerhappygod »

Two Cylindrical Rods One Of Steel And The Other Brass Are Joined At C And Restrained By Rigid Support At A At The Supp 1
Two Cylindrical Rods One Of Steel And The Other Brass Are Joined At C And Restrained By Rigid Support At A At The Supp 1 (774.05 KiB) Viewed 33 times

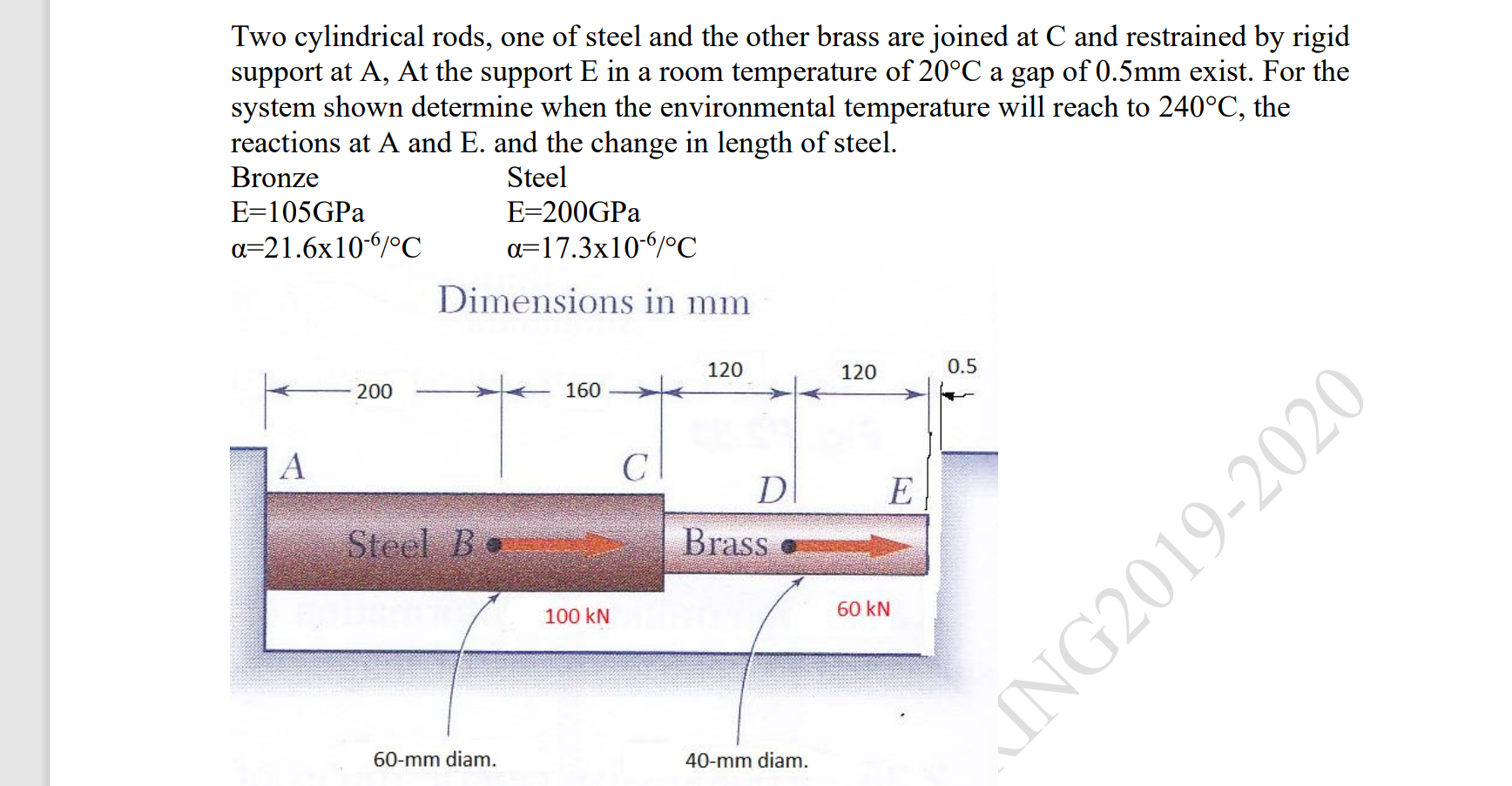

Two cylindrical rods, one of steel and the other brass are joined at C and restrained by rigid support at A, At the support E in a room temperature of 20°C a gap of 0.5mm exist. For the system shown determine when the environmental temperature will reach to 240°C, the reactions at A and E. and the change in length of steel. Bronze Steel E=105GPa a=21.6x10-6/°C A 200 Dimensions in mm Steel B. E=200GPa a-17.3x10-6/°°℃ 60-mm diam. 160 100 KN C 120 D Brass 40-mm diam. 120 E 60 kN 0.5 ING2019-2020
