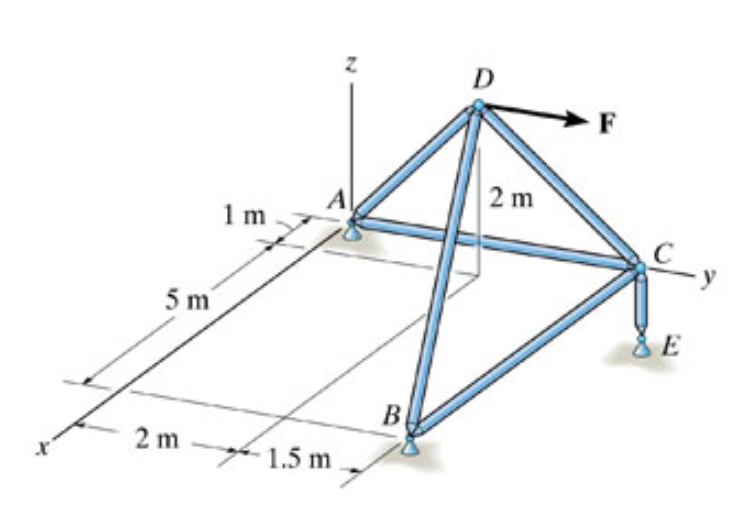

The space truss shown below is supported by ball-and-socket joints at A, B, and E. Set F = {900 j} N. Hint: The support
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
The space truss shown below is supported by ball-and-socket joints at A, B, and E. Set F = {900 j} N. Hint: The support
The space truss shown below is supported by ball-and-socketjoints at A, B, and E. Set F = {900 j} N. Hint: The supportreaction at E acts along member EC.
Determine the force in the ALL members(AD, BD, CD, AC, BC, & EC) of the truss and state if themember is in tension or compression. Express your answer tothree significant figures and include the appropriate units. Enternegative value in the case of compression and positive value in thecase of tension. Show all work and show all necessary free bodydiagrams.
5 m 2 m 1m 1.5 m B D 2 m & E
Determine the force in the ALL members(AD, BD, CD, AC, BC, & EC) of the truss and state if themember is in tension or compression. Express your answer tothree significant figures and include the appropriate units. Enternegative value in the case of compression and positive value in thecase of tension. Show all work and show all necessary free bodydiagrams.
