Can Someone Explain A Few Of The Steps In This Solution Here Is The Question I Am Looking At Solution Https Www Che 2 (15.06 KiB) Viewed 34 times
And how is Q zero for this?
Can Someone Explain A Few Of The Steps In This Solution Here Is The Question I Am Looking At Solution Https Www Che 3 (6.2 KiB) Viewed 34 times

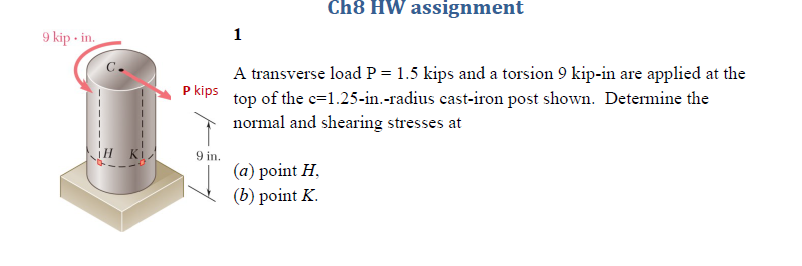

9 kip. in. 1 A transverse load P = 1.5 kips and a torsion 9 kip-in are applied at the P kips top of the c=1.25-in.-radius cast-iron post shown. Determine the normal and shearing stresses at 9 in. Ch8 HW assignment (a) point H, (b) point K.

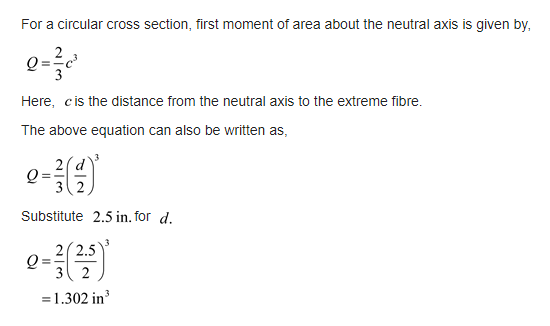

For a circular cross section, first moment of area about the neutral axis is given by, Here, c is the distance from the neutral axis to the extreme fibre. The above equation can also be written as, Substitute 2.5 in. for d. = 1.302 in³

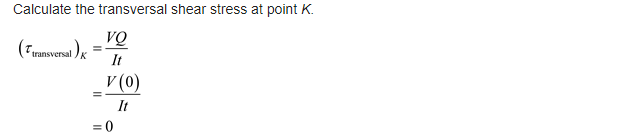

Calculate the transversal shear stress at point K. VO It V (0) It transversal K = 0
