A thin polymer plate PQR is deformed so that corner Q is displaced downward by a distance L = 1.15 mm to new position Q'

Post by answerhappygod »

A Thin Polymer Plate Pqr Is Deformed So That Corner Q Is Displaced Downward By A Distance L 1 15 Mm To New Position Q 1
A Thin Polymer Plate Pqr Is Deformed So That Corner Q Is Displaced Downward By A Distance L 1 15 Mm To New Position Q 1 (32.87 KiB) Viewed 27 times

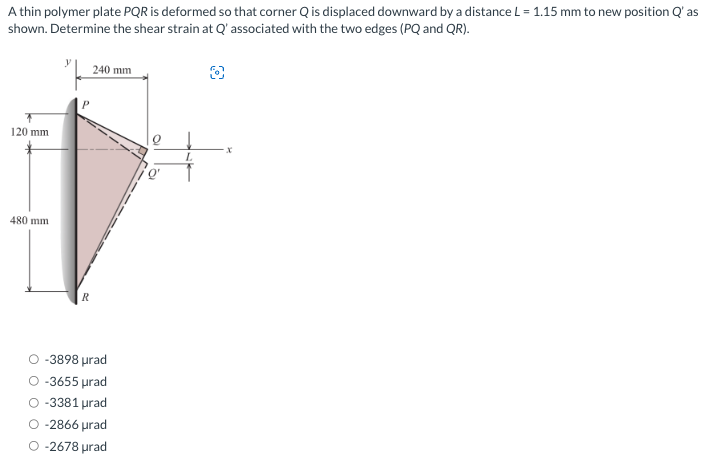

A thin polymer plate PQR is deformed so that corner Q is displaced downward by a distance L = 1.15 mm to new position Q' as shown. Determine the shear strain at Q' associated with the two edges (PQ and QR). 120 mm 480 mm 가 R 240 mm -3898 urad -3655 μrad O -3381 prad -2866 μrad -2678 μrad X
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
