When an axial load is applied to the ends of the bar shown, where L₁ = 45 in. and L2 = 85 in., the total elongation of t
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
When an axial load is applied to the ends of the bar shown, where L₁ = 45 in. and L2 = 85 in., the total elongation of t

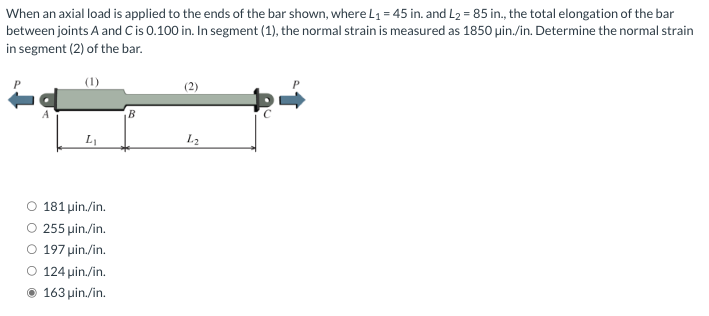

When an axial load is applied to the ends of the bar shown, where L₁ = 45 in. and L2 = 85 in., the total elongation of the bar between joints A and C is 0.100 in. In segment (1), the normal strain is measured as 1850 pin./in. Determine the normal strain in segment (2) of the bar. (1) A L₁ 181 μin./in. 255 μin./in. 197 μin./in. 124 pin./in. 163 μin./in. B L₂
