Question 1 a) For the beam shown in the Figure 1 determine the location and the magnitude of the maximum deflection. (As

Post by answerhappygod »

Question 1 A For The Beam Shown In The Figure 1 Determine The Location And The Magnitude Of The Maximum Deflection As 1
Question 1 A For The Beam Shown In The Figure 1 Determine The Location And The Magnitude Of The Maximum Deflection As 1 (28.14 KiB) Viewed 32 times

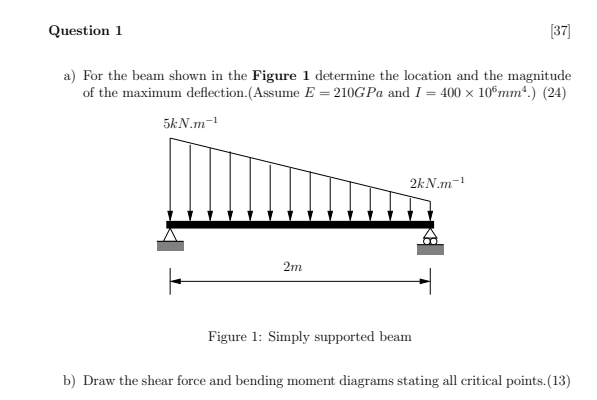

Question 1 a) For the beam shown in the Figure 1 determine the location and the magnitude of the maximum deflection. (Assume E = 210GPa and I = 400 × 106mm².) (24) 5kN.m-¹ 2m 2kN.m-¹ [37] Figure 1: Simply supported beam b) Draw the shear force and bending moment diagrams stating all critical points. (13)
