Question 1 Mr Vae 1m 8knm 1 B I 2m 4knm 1 1m Figure 1 Cantilever Beam 3knm 1 2m E 43 1 (14.79 KiB) Viewed 29 times

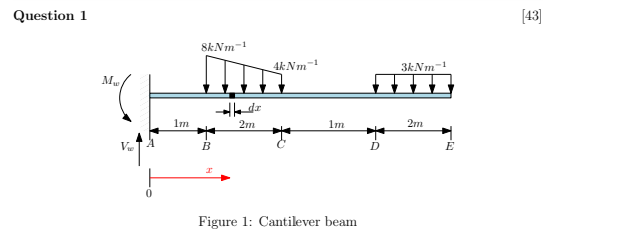

For the beam shown above (Fig. 1),
(a) Derive equations for S.F. -V (x) and B.M. -M(x), for span B-C. (8)(b) Draw the shear force and bending moment diagrams of the beam A-E and label allcritical points. (15)(c) Calculate the slope of the beam at E if EI = 40MNm^2 (16)(d) Determine the maximum deflection of beam A-E. (4) Question 1 Mr. Væ 1m 8kNm-1 B I 2m 4kNm-1 1m Figure 1: Cantilever beam 3kNm-1 2m E [43]
