Please pay attention to the criteria and details of the problem and do not copy other solutions as it contains differnt numbers and dimensions!

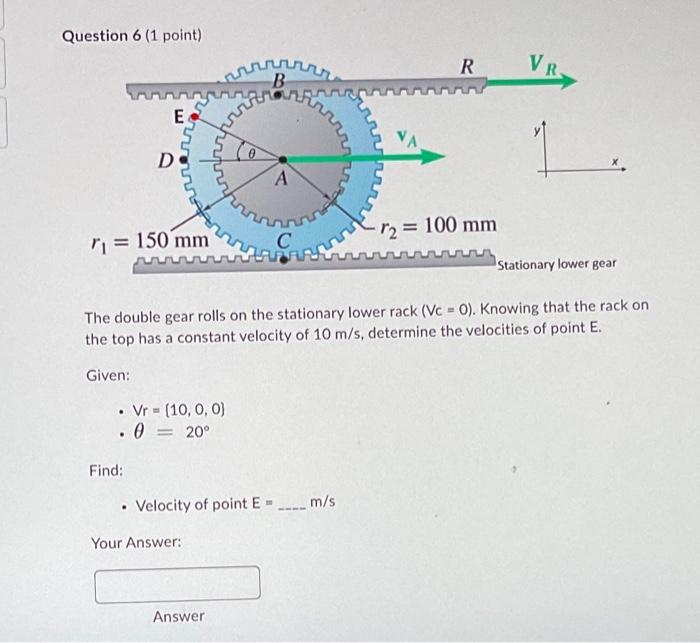

Question 6 (1 point) E D r₁= 150 mm Find: • Vr = [10, 0, 0) . 0 = 20° B Your Answer: prin Answer A infirrrrr C • Velocity of point E =_____ m/s . Stationary lower gear The double gear rolls on the stationary lower rack (Vc = 0). Knowing that the rack on the top has a constant velocity of 10 m/s, determine the velocities of point E. Given: R n - 72 = 100 mm VR.
