Question 1 [14] A cantilever beam (Fig. 1) that is fixed at A and free at D is subjected to a distributed load AB of uni

[answerhappygod]

Question 1 14 A Cantilever Beam Fig 1 That Is Fixed At A And Free At D Is Subjected To A Distributed Load Ab Of Uni 1 (39.42 KiB) Viewed 37 times

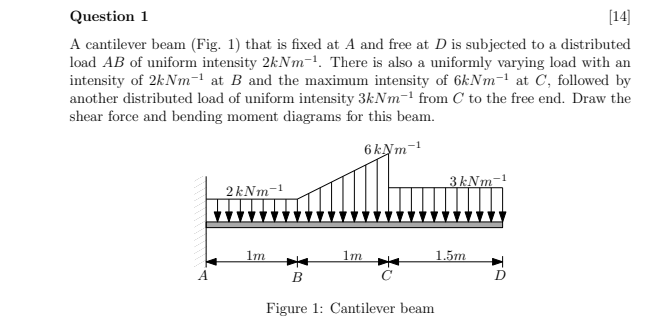

Question 1 [14] A cantilever beam (Fig. 1) that is fixed at A and free at D is subjected to a distributed load AB of uniform intensity 2kNm-¹1. There is also a uniformly varying load with an intensity of 2kNm-¹ at B and the maximum intensity of 6kNm-¹ at C, followed by another distributed load of uniform intensity 3kNm-¹ from C to the free end. Draw the shear force and bending moment diagrams for this beam. 6kNm-¹ A 2 kNm-¹ 1m B 1m Figure 1: Cantilever beam 3kNm-¹ 1.5m D
