The 45° strain rosette shown in FIGURE Q4 is mounted on a machine element. = 650(10%), The following readings are obtain

Post by answerhappygod »

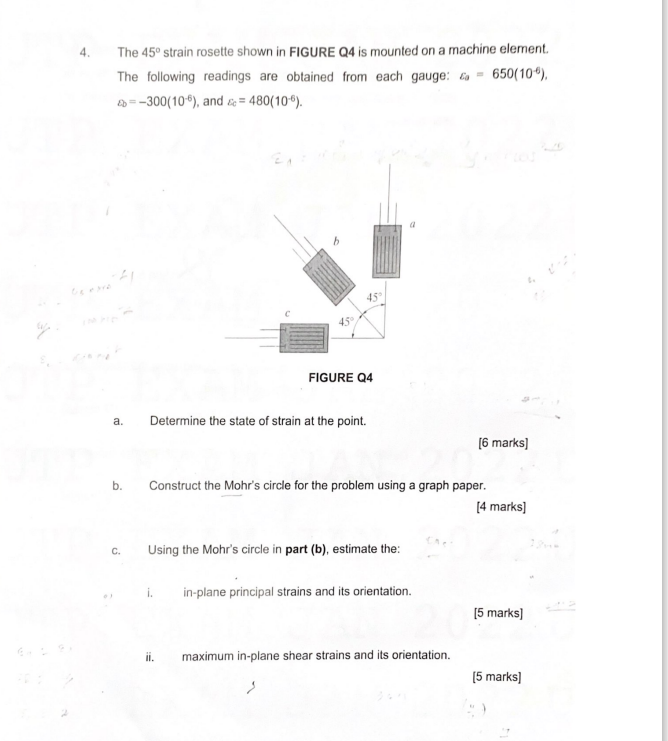

The 45 Strain Rosette Shown In Figure Q4 Is Mounted On A Machine Element 650 10 The Following Readings Are Obtain 1
The 45 Strain Rosette Shown In Figure Q4 Is Mounted On A Machine Element 650 10 The Following Readings Are Obtain 1 (260.64 KiB) Viewed 30 times
The 45° strain rosette shown in FIGURE Q4 is mounted on a machine element. = 650(10%), The following readings are obtained from each gauge: b=-300(106), and & = 480(10-6). AL a. b. C. EN 45° i. 45° Determine the state of strain at the point. ii. FIGURE Q4 Construct the Mohr's circle for the problem using a graph paper. Using the Mohr's circle in part (b), estimate the: in-plane principal strains and its orientation. [6 marks] maximum in-plane shear strains and its orientation. [4 marks] [5 marks] [5 marks]
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
