SMAT302 Main Problem For the beam shown in the figure below, (a) Draw the shear force and bending moment diagrams insert

Post by answerhappygod »

Smat302 Main Problem For The Beam Shown In The Figure Below A Draw The Shear Force And Bending Moment Diagrams Insert 1
Smat302 Main Problem For The Beam Shown In The Figure Below A Draw The Shear Force And Bending Moment Diagrams Insert 1 (59.57 KiB) Viewed 29 times

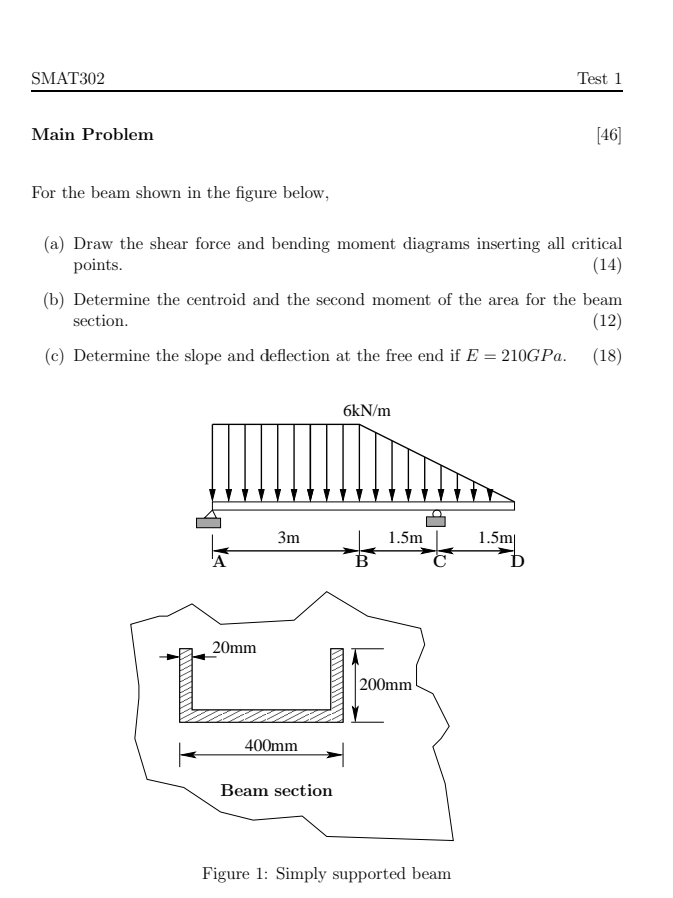

SMAT302 Main Problem For the beam shown in the figure below, (a) Draw the shear force and bending moment diagrams inserting all critical points. (14) 20mm (b) Determine the centroid and the second moment of the area for the beam section. (12) (c) Determine the slope and deflection at the free end if E = 210GPa. (18) 3m 400mm 6kN/m Beam section B JE 1.5m 200mm Test 1 Figure 1: Simply supported beam [46] 1.5m|
