A beam has the WF (i.e. I- beam) section as shown. a) At the section where the vertical shear is V= 70kN, compute the ma

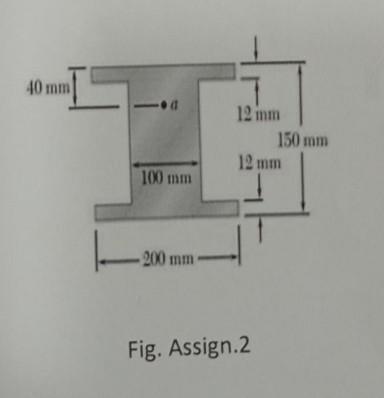

A beam has the WF (i.e. I- beam) section as shown. a) At the section where the vertical shear is V= 70kN, compute the maximum shear stress and also the shear stress at the junction of the flange and web, b) Plot the shearing stress distribution across the WF section.
40 mm 100 mm -200 mm 1 12 mm 150 mm 12 mm Fig. Assign.2
40 mm 100 mm -200 mm 1 12 mm 150 mm 12 mm Fig. Assign.2
