32. The cantilever beam is loaded as shown. P1, P2 and a are 20 kN, 50 kN, and 600 mm. Determine the maximum normal stre

Post by answerhappygod »

32 The Cantilever Beam Is Loaded As Shown P1 P2 And A Are 20 Kn 50 Kn And 600 Mm Determine The Maximum Normal Stre 1
32 The Cantilever Beam Is Loaded As Shown P1 P2 And A Are 20 Kn 50 Kn And 600 Mm Determine The Maximum Normal Stre 1 (130.05 KiB) Viewed 36 times

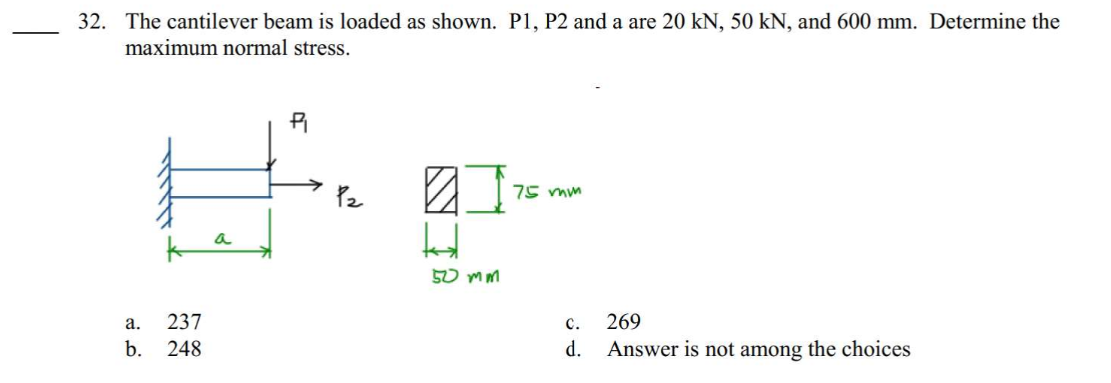

32. The cantilever beam is loaded as shown. P1, P2 and a are 20 kN, 50 kN, and 600 mm. Determine the maximum normal stress. a. b. 237 248 a P₁ P₂ AI hat 50 mm 75 mm C. d. 269 Answer is not among the choices
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
