A thin triangular plate PQR forms a right angle at point Q. During deformation, point Q moves to the left by u = 3.0 mm

Post by answerhappygod »

A Thin Triangular Plate Pqr Forms A Right Angle At Point Q During Deformation Point Q Moves To The Left By U 3 0 Mm 1
A Thin Triangular Plate Pqr Forms A Right Angle At Point Q During Deformation Point Q Moves To The Left By U 3 0 Mm 1 (45.97 KiB) Viewed 46 times

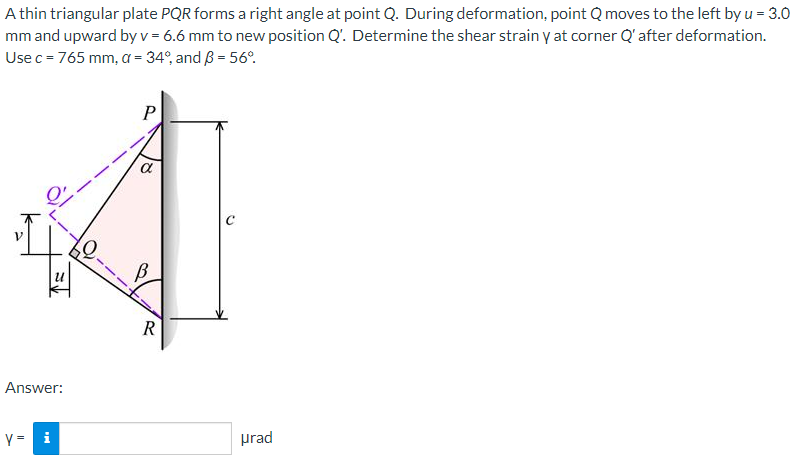

A thin triangular plate PQR forms a right angle at point Q. During deformation, point Q moves to the left by u = 3.0 mm and upward by v = 6.6 mm to new position Q'. Determine the shear strain y at corner Q' after deformation. Use c = 765 mm, a = 34°, and ß = 56°. U Answer: y = i P B R urad
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
