Problem-1: (40 Pts) Given the mechanical system depicted below in Figure-1, where u is the force input and x, and x₂ are

[answerhappygod]

Problem 1 40 Pts Given The Mechanical System Depicted Below In Figure 1 Where U Is The Force Input And X And X Are 1 (6.6 KiB) Viewed 22 times

Problem 1 40 Pts Given The Mechanical System Depicted Below In Figure 1 Where U Is The Force Input And X And X Are 2 (8.61 KiB) Viewed 22 times

Problem 1 40 Pts Given The Mechanical System Depicted Below In Figure 1 Where U Is The Force Input And X And X Are 3 (17.67 KiB) Viewed 22 times

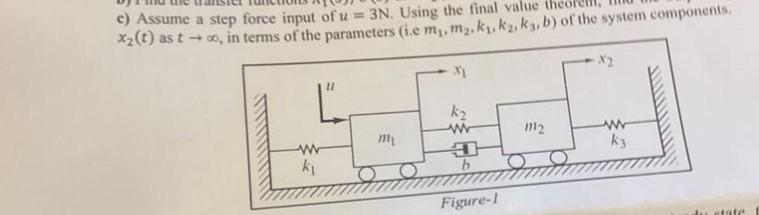

Problem-1: (40 Pts) Given the mechanical system depicted below in Figure-1, where u is the force input and x, and x₂ are the position outputs;
a) Obtain the parametric mathematical model of this system. b) Find the transfer functions X₁ (s)/U(s) and X₂ (s)/U(s). e) Assume a step force input of u = 3N. Using the final value theorem, find the outputs x, (t) mukuką, ką, b) of the system components. Gem
c) Assume a step force input of u = 3N. Using the final value x₂ (t) as t→∞, in terms of the parameters (i.e m,,m₂, k₁, k₂, kg, b) of the system components. www k₁ my k₂ www Figure-1 m2 www k3 lu state. I
