A fluid storage tank is fixed to the wall as shown in the figure. Considering the unit width (into the page) of the cont

Post by answerhappygod »

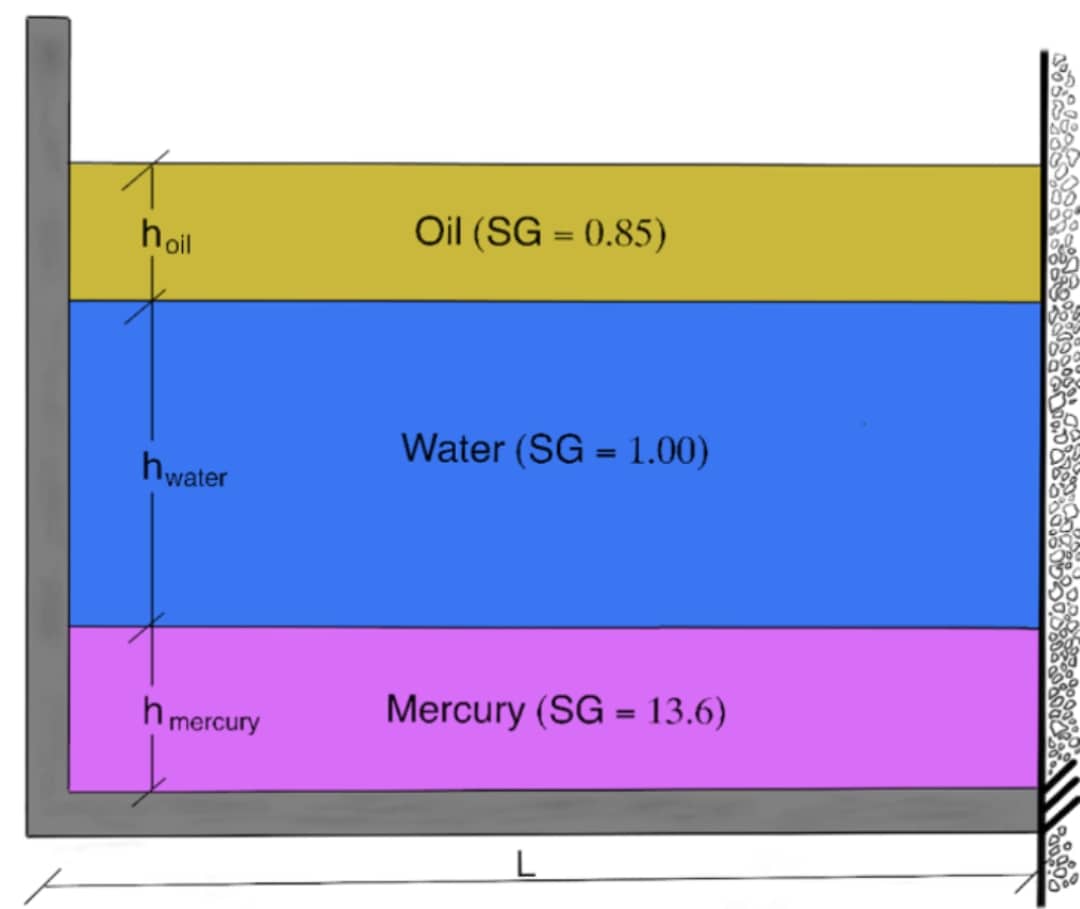

A fluid storage tank is fixed to the wall as shown in thefigure. Considering the unit width (into the page) of thecontainer, a) Determine the reaction at the fixed support. Neglectthe thickness and weight of the container.
h (oil) = 0.53 m
h (water) = 1.41 m
h (mercury) = 0.71 m
A Fluid Storage Tank Is Fixed To The Wall As Shown In The Figure Considering The Unit Width Into The Page Of The Cont 1
A Fluid Storage Tank Is Fixed To The Wall As Shown In The Figure Considering The Unit Width Into The Page Of The Cont 1 (43.93 KiB) Viewed 23 times
hoil hwater mercury Oil (SG = 0.85) Water (SG = 1.00) Mercury (SG = 13.6) L
