Multisim task
Instructions: Do this task only if you have Multisimapplication since I need a simulation coming from Multisimand the input against the output voltage graph
Multisim Task Instructions Do This Task Only If You Have Multisim Application Since I Need A Simulation Coming From Mul 1 (44.62 KiB) Viewed 50 times

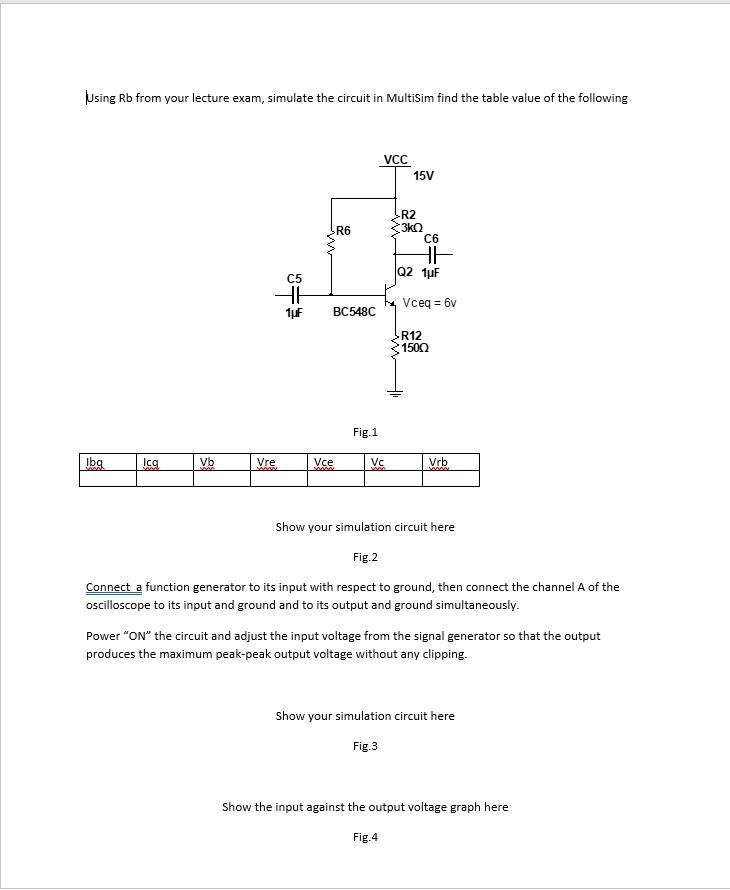

Using Rb from your lecture exam, simulate the circuit in MultiSim find the table value of the following lbg Icg Vb 5000 C5 H Vre 1μF R6 BC548C Vce Fig.1 VCC VC 15V -R2 3kQ C6 ㅓㅏ Q2 1μF Vceq = 6v -R12 1500 Vrb JABABE Show your simulation circuit here Fig.2 Connect a function generator to its input with respect to ground, then connect the channel A of the oscilloscope to its input and ground and to its output and ground simultaneously. Power "ON" the circuit and adjust the input voltage from the signal generator so that the output produces the maximum peak-peak output voltage without any clipping. Show your simulation circuit here Fig.3 Show the input against the output voltage graph here Fig.4
