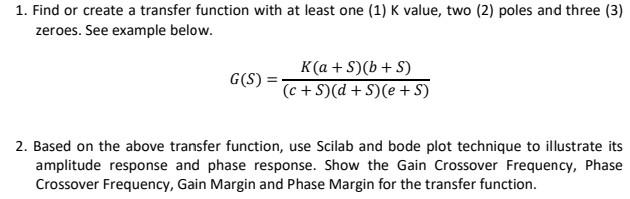

1 Find Or Create A Transfer Function With At Least One 1 K Value Two 2 Poles And Three 3 Zeroes See Example Bel 1 (22.62 KiB) Viewed 40 times
Question 1 can be done theoretically. You Must Use Scilab for Question 2.
1. Find or create a transfer function with at least one (1) K value, two (2) poles and three (3) zeroes. See example below. G(S) K(a + S)(b + S) (c +S) (d+S) (e + S) 2. Based on the above transfer function, use Scilab and bode plot technique to illustrate its amplitude response and phase response. Show the Gain Crossover Frequency, Phase Crossover Frequency, Gain Margin and Phase Margin for the transfer function.
