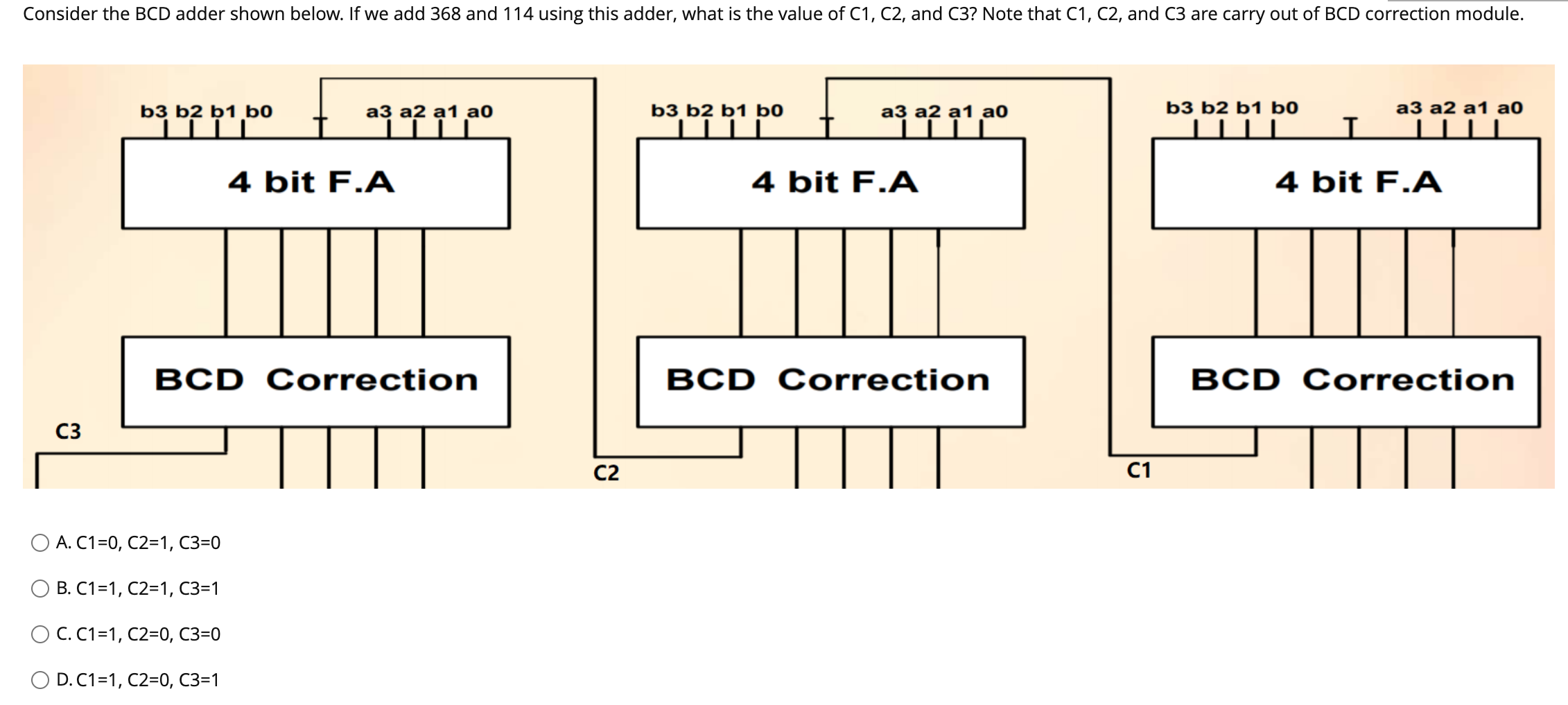

Consider the BCD adder shown below. If we add 368 and 114 using this adder, what is the value of C1, C2, and C3? Note th

[answerhappygod]

Consider The Bcd Adder Shown Below If We Add 368 And 114 Using This Adder What Is The Value Of C1 C2 And C3 Note Th 1 (268.34 KiB) Viewed 53 times

Consider the BCD adder shown below. If we add 368 and 114 using this adder, what is the value of C1, C2, and C3? Note that C1, C2, and C3 are carry out of BCD correction module. b3 b2 b1 b0 a3 a2 a1 a0 4 bit F.A === BCD Correction C3 b3 b2 b1 b0 A. C1=0, C2=1, C3=0 a3 a2 a1 a0 பட் BCD Correction B. C1=1, C2=1, C3=1 O C. C1=1, C2=0, C3=0 O D. C1=1, C2=0, C3=1 4 bit F.A C2 C1 b3 b2 b1 bo a3 a2 a1 a0 4 bit F.A BCD Correction
