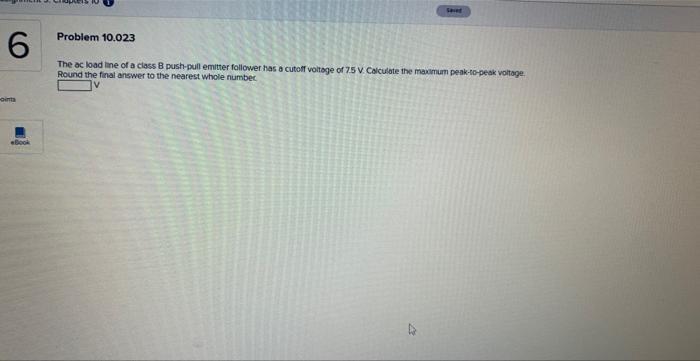

6 -oints LETS 10 Saved Problem 10.023 The ac load line of a class B push-pull emitter follower has a cutoff voltage of 7.5 V. Calculate the maximum peak-to-peak voltage Round the final answer to the nearest whole number 47
7 1 points eBook Problem 10.024 Consider the circult shown below, where RL-8.20. The maximum peak-to-peak voltage is 30 V. Calculate the maximum power dissipation of each transistor. Round the final answer to two decimal places. R₁ 220 220 W P₂ R₂ W Q₁ d O Vcc +30 V ww-1
