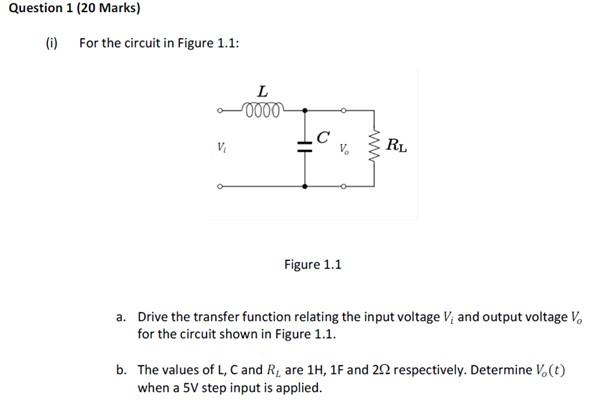

Question 1 (20 Marks) (i) For the circuit in Figure 1.1: V₁ L 0000 5° Figure 1.1 www RL a. Drive the transfer function relating the input voltage V, and output voltage Vo for the circuit shown in Figure 1.1. b. The values of L, C and R, are 1H, 1F and 202 respectively. Determine V, (t) when a 5V step input is applied.

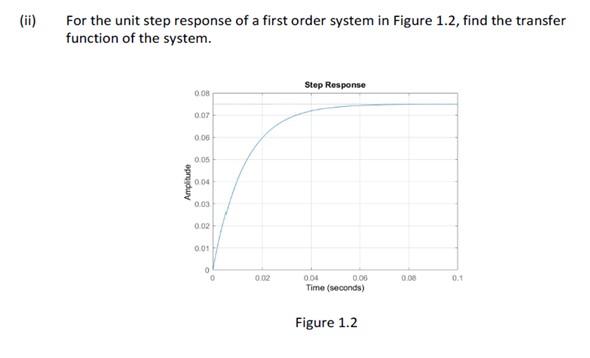

(ii) For the unit step response of a first order system in Figure 1.2, find the transfer function of the system. Amplitude 0.08 0.07 0.06 0.05 0.04 0.03 0.02 0.01 0 0.02 Step Response 0.04 0.00 Time (seconds) Figure 1.2 0.08 0.1

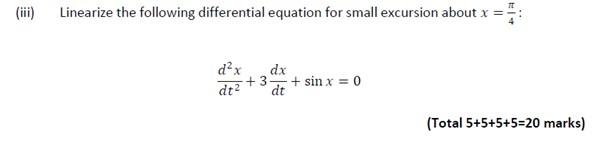

(iii) IT Linearize the following differential equation for small excursion about x = d²x dt² dx +3+ sin x = 0 (Total 5+5+5+5=20 marks)
