Problem 10.003 m 1 Consider the circult given below, where R₂-510 0. Rc 750 0. and Re-240 0. The base emitter voltage is

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Problem 10.003 m 1 Consider the circult given below, where R₂-510 0. Rc 750 0. and Re-240 0. The base emitter voltage is

Post by answerhappygod »

Problem 10 003 M 1 Consider The Circult Given Below Where R 510 0 Rc 750 0 And Re 240 0 The Base Emitter Voltage Is 1
Problem 10 003 M 1 Consider The Circult Given Below Where R 510 0 Rc 750 0 And Re 240 0 The Base Emitter Voltage Is 1 (27.64 KiB) Viewed 59 times

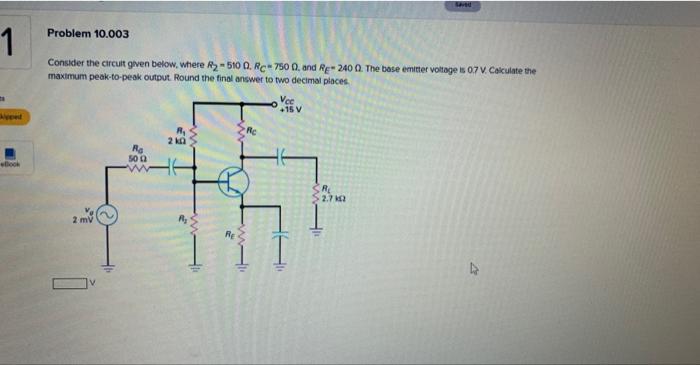

Problem 10.003 m 1 Consider the circult given below, where R₂-510 0. Rc 750 0. and Re-240 0. The base emitter voltage is 07 V. Calculate the maximum peak-to-peak output. Round the final answer to two decimal places. 2 mV 500 P₂ Re Voc +15 V saved R 2.72 4
