An alternative to the prototype bandpass filter illustrated in (Eigure 1) is to make wo = 1 rad/s, R=1, and L = Q henrys

[answerhappygod]

An Alternative To The Prototype Bandpass Filter Illustrated In Eigure 1 Is To Make Wo 1 Rad S R 1 And L Q Henrys 1 (22.1 KiB) Viewed 58 times

An Alternative To The Prototype Bandpass Filter Illustrated In Eigure 1 Is To Make Wo 1 Rad S R 1 And L Q Henrys 2 (43.49 KiB) Viewed 58 times

An Alternative To The Prototype Bandpass Filter Illustrated In Eigure 1 Is To Make Wo 1 Rad S R 1 And L Q Henrys 3 (46.33 KiB) Viewed 58 times

An Alternative To The Prototype Bandpass Filter Illustrated In Eigure 1 Is To Make Wo 1 Rad S R 1 And L Q Henrys 4 (27.25 KiB) Viewed 58 times

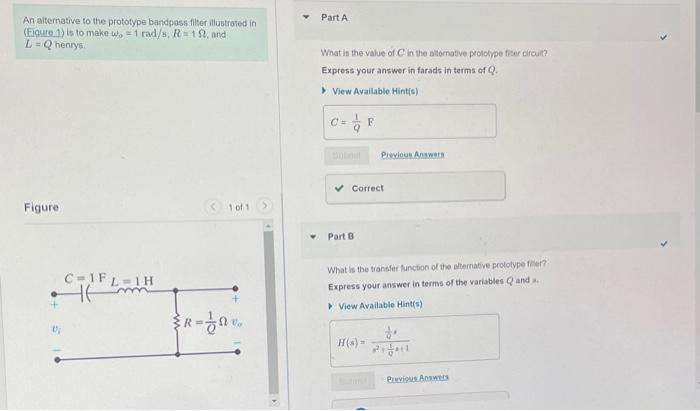

An alternative to the prototype bandpass filter illustrated in (Eigure 1) is to make wo = 1 rad/s, R=1, and L = Q henrys Figure C-1FL-1H 46 < 1 of 1 Part A What is the value of C in the alternative prototype fiter circuit? Express your answer in farads in terms of Q. View Available Hint(s) C = F Dobnil Correct Part B Previous Answers What is the transfer function of the alternative prototype filer? Express your answer in terms of the variables Q and a. View Available Hint(s) d H(s) - Previous Answers

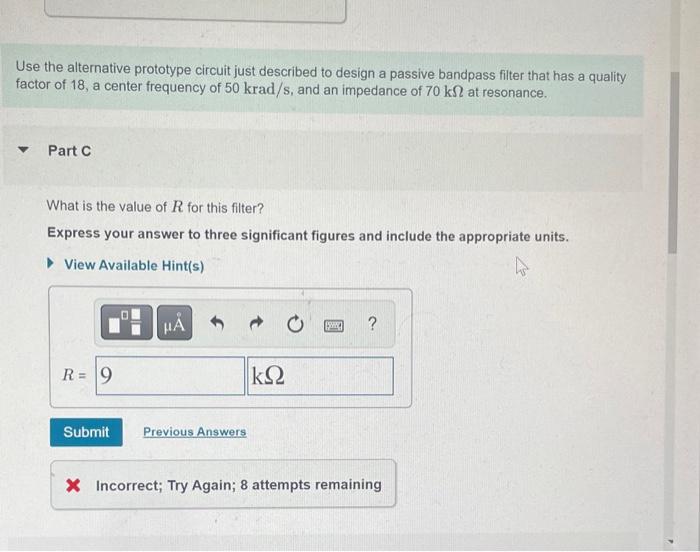

Use the alternative prototype circuit just described to design a passive bandpass filter that has a quality factor of 18, a center frequency of 50 krad/s, and an impedance of 70 kn at resonance. ▾ Part C What is the value of R for this filter? Express your answer to three significant figures and include the appropriate units. ▸ View Available Hint(s) R= 9 Submit HÅ Previous Answers ΚΩ ? X Incorrect; Try Again; 8 attempts remaining

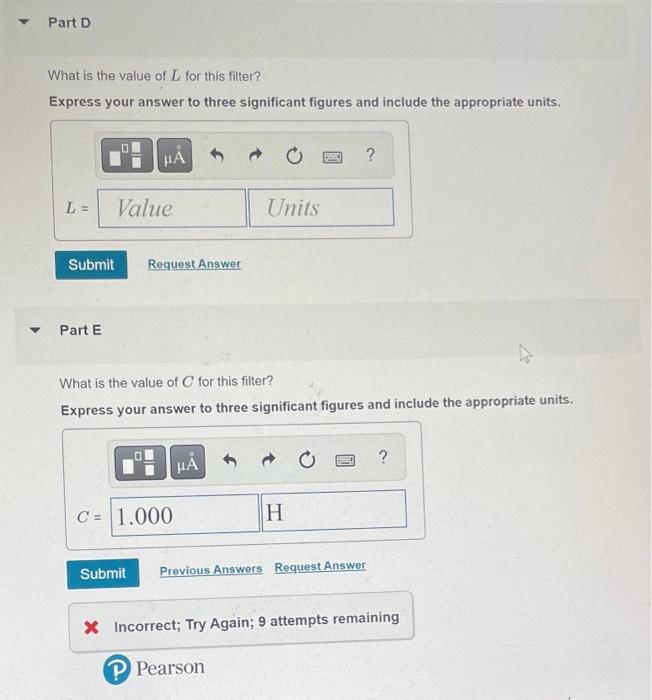

▾ Part D What is the value of L for this filter? Express your answer to three significant figures and include the appropriate units. L = μÀ Part E Value Submit Request Answer C= 1.000 Units HÅ What is the value of C for this filter? Express your answer to three significant figures and include the appropriate units. Ba H ? Submit Previous Answers Request Answer ? X Incorrect; Try Again; 9 attempts remaining P Pearson

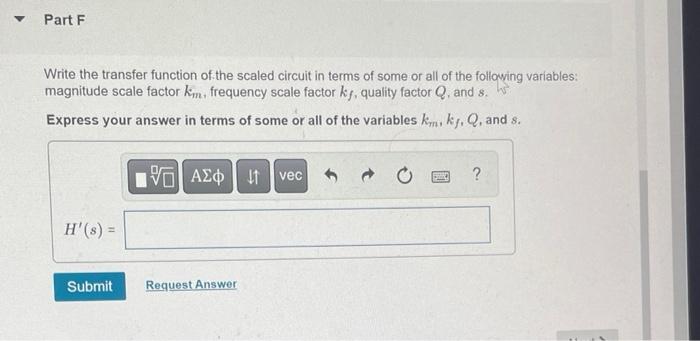

▾ Part F Write the transfer function of the scaled circuit in terms of some or all of the following variables: magnitude scale factor km. frequency scale factor kf, quality factor Q, and s. Express your answer in terms of some or all of the variables km, kf, Q, and s. H'(s) = 15. ΑΣΦ 11 vec Submit Request Answer → PIRK ?
