Problem Solving 2. A balanced delta connected load, with Z = 30 30° , is connected to a three-phase, three-wire, 250 V s

Post by answerhappygod »

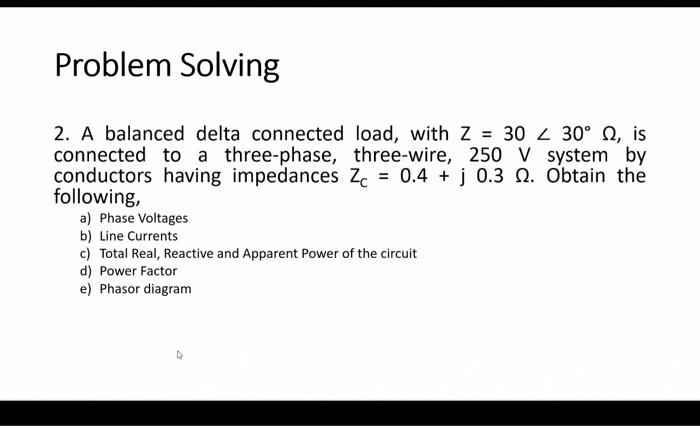

Problem Solving 2 A Balanced Delta Connected Load With Z 30 30 Is Connected To A Three Phase Three Wire 250 V S 1
Problem Solving 2 A Balanced Delta Connected Load With Z 30 30 Is Connected To A Three Phase Three Wire 250 V S 1 (31.09 KiB) Viewed 49 times
Problem Solving 2. A balanced delta connected load, with Z = 30 30° , is connected to a three-phase, three-wire, 250 V system by conductors having impedances Zc = 0.4+ j 0.3 . Obtain the following, a) Phase Voltages b) Line Currents c) Total Real, Reactive and Apparent Power of the circuit d) Power Factor e) Phasor diagram
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
