Prelab: 1. For the amplifier circuits in Figs. 1, 2, 3, and 4: a. Calculate the Q-point values of collector current (Ic)

[answerhappygod]

Prelab 1 For The Amplifier Circuits In Figs 1 2 3 And 4 A Calculate The Q Point Values Of Collector Current Ic 1 (25.35 KiB) Viewed 43 times

Prelab 1 For The Amplifier Circuits In Figs 1 2 3 And 4 A Calculate The Q Point Values Of Collector Current Ic 2 (72.05 KiB) Viewed 43 times

Prelab 1 For The Amplifier Circuits In Figs 1 2 3 And 4 A Calculate The Q Point Values Of Collector Current Ic 3 (91.85 KiB) Viewed 43 times

Prelab 1 For The Amplifier Circuits In Figs 1 2 3 And 4 A Calculate The Q Point Values Of Collector Current Ic 4 (60.11 KiB) Viewed 43 times

Prelab 1 For The Amplifier Circuits In Figs 1 2 3 And 4 A Calculate The Q Point Values Of Collector Current Ic 5 (83.53 KiB) Viewed 43 times

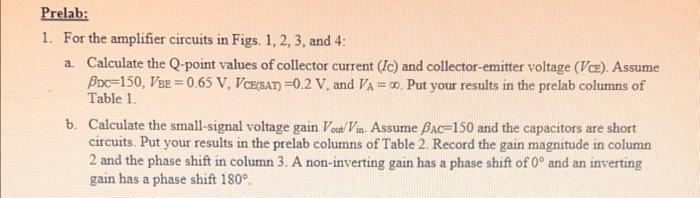

Prelab: 1. For the amplifier circuits in Figs. 1, 2, 3, and 4: a. Calculate the Q-point values of collector current (Ic) and collector-emitter voltage (VCE). Assume BDC-150, VBE=0.65 V, VCE(SAT) -0.2 V, and VA = ∞. Put your results in the prelab columns of Table 1. b. Calculate the small-signal voltage gain Vout/Vin. Assume BAC-150 and the capacitors are short circuits. Put your results in the prelab columns of Table 2. Record the gain magnitude in column 2 and the phase shift in column 3. A non-inverting gain has a phase shift of 0° and an inverting gain has a phase shift 180°.

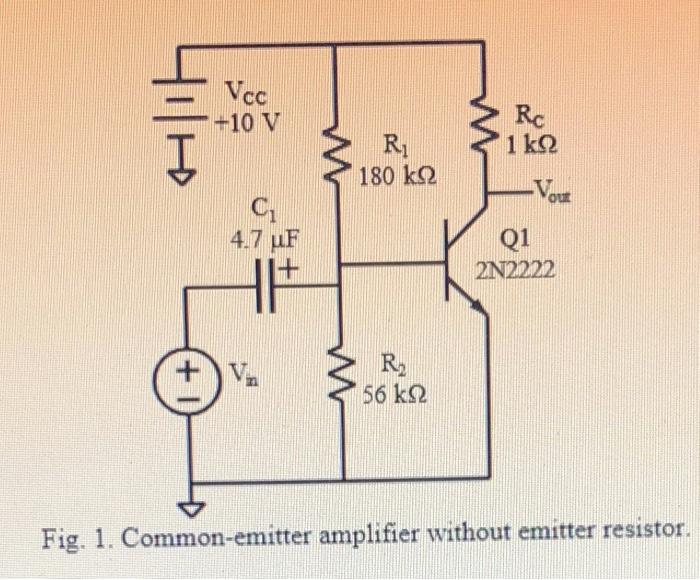

4110 Vcc +10 V C₁ 4.7 uF +V₂ R₁ 180 ΚΩ R₂ 56 ΚΩ Rc 1kQ Vout Q1 2N2222 Fig. 1. Common-emitter amplifier without emitter resistor.
411H (1+ Vcc -10 V C₁ 4.7 uF R₁ 180 ΚΩ R₂ 56 ΚΩ Re 1kQ -Vout Q1 2N2222 R₂ 100 Ω Fig. 2. Common-emitter amplifier with emitter resistor.
4110 +1 Vcc +10 V C₁ 4.7 uF V₂ R₁ 180 ΚΩ R₂ 56 ΚΩ RE 100 Ω Re 1 kQ Vout Q1 2N2222 CE 47 uF Fig. 3. Common-emitter amplifier with bypassed emitter resistor.
41110 +1 Vcc +10 V C₁ 4.7 uF Vin m R₁ 180 ΚΩ R₂ 56 ΚΩ Q1 2N2222 OLE RE 100 Ω Fig. 4. Common-collector amplifier.
